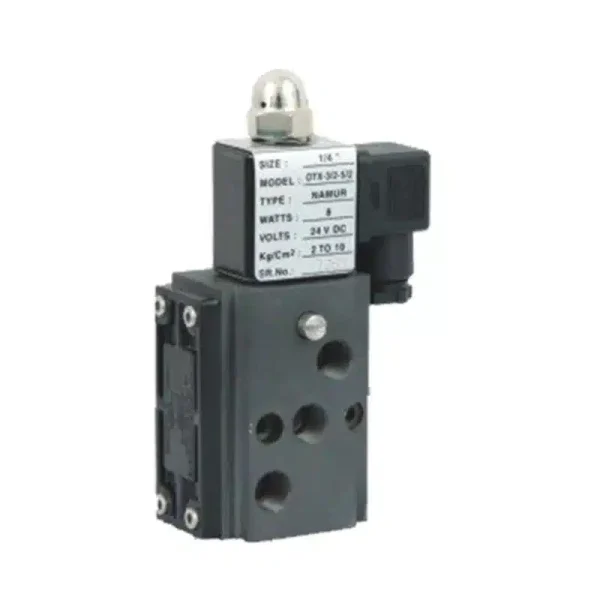

“aira” Offers 3/2 Way Convertible Poppet Type Namur Solenoid Valve Opens And Shut By Given Electrical Signals AC Or DC, Outputs Supply Air Pressure To Valve (Actuator) Or Changes The Output Port Direction.
1/4”
Upto 10 BAR
-20° To 70° C
Aluminium (SS On Request)
NBR (Viton On Request)
12V, 24V, 48V, 110V, 230V, AC/DC
1 – Easy Replacement Of Coil As Both AC And DC Type Use Same Enclosure.
2 – Can Test The Operation In Manual Switch Without Power Source.
3 – High Durability As Valve Body Is Pneumatic Pressure Operating Type.
4 – Can Be Directly Mounted On An Actuator (NAMUR Design)
5 – Ideally Suited For Spring Return Actuator For On / Off Duty Dust Cap Fitted On Exhaust Ports.
6 – Interchangeable Of AC And DC Coils.
7 – Manual Over Ride Switch.
Get in touch with our team at +91 9099477256 to receive the Dimension Table
