3/2 Way Pneumatic Cylinder Operated

Control Valve

Size Range
15MM To 100MM
Temperature Range
Upto 220°C Max
Inquiry Now

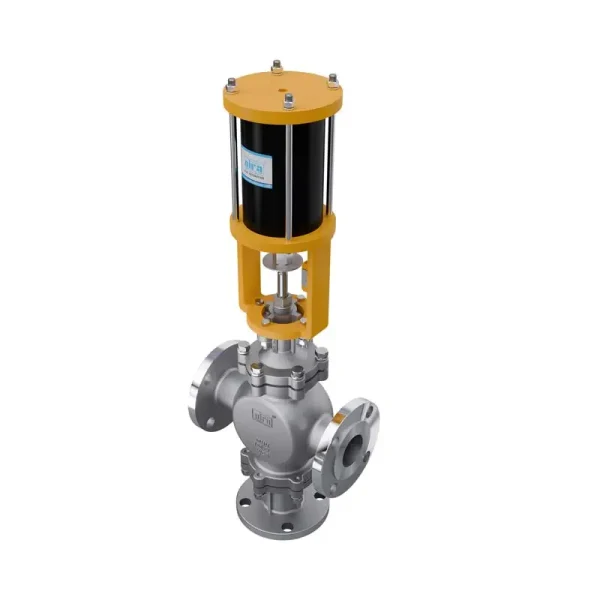

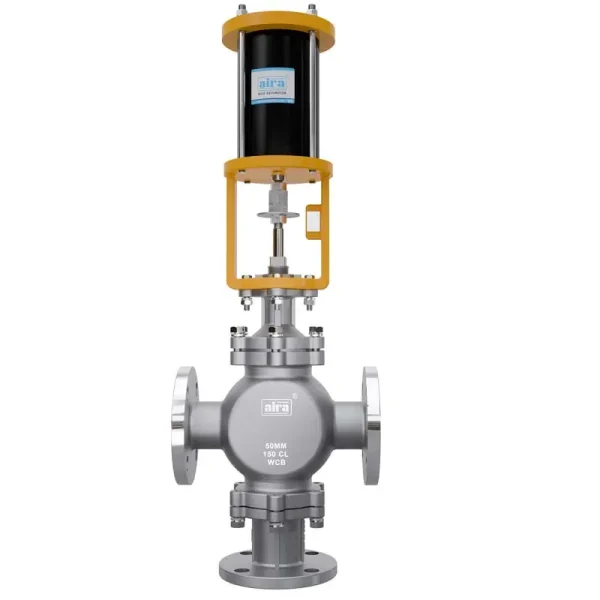

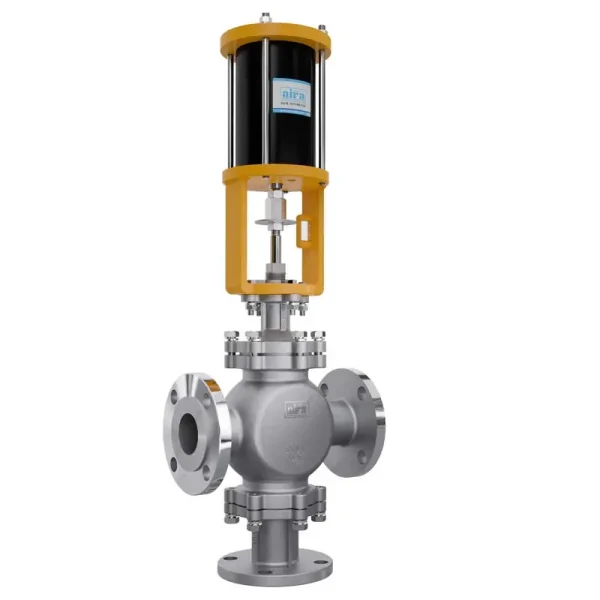

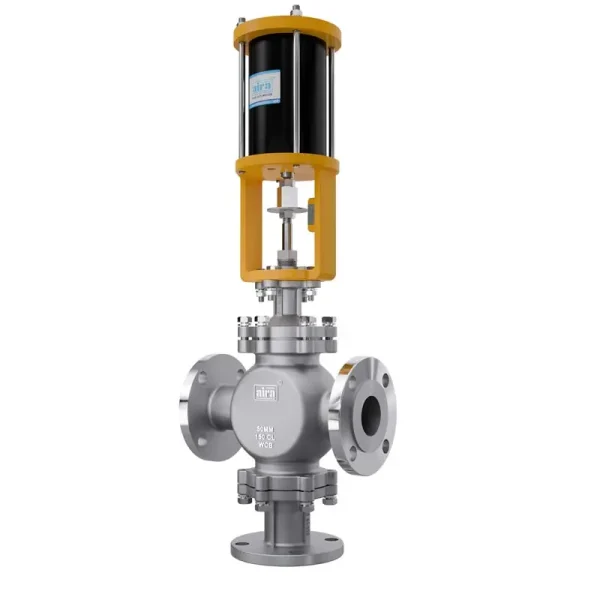

3/2 Way Pneumatic Cylinder Operated Control Valve

Size Range
15MM To 100MM
Temperature Range
Upto 220°C Max
Inquiry Now

Approvals

“aira” Offers 2/2 – 3/2 way pneumatic Cylinder operated precise Regulating design control valve for Steam & Water Upto 200°C.

Specification & Standard

Size Range

15MM To 100MM

Tempreature Range

Upto 220°C Max

Shutoff Rating

Tight Shut Off Leakage Class - 6

Body Style

Soft

Flange Drilling

150#, 300#

Certification

IBR Approved

Body Materials

WCB / CF8 / CF8M

Stem Materials

S. S - 304 / S. S - 316

Seat Materials

PTFE / CFT / GFT

Plug Materials

S. S - 304 / S. S - 316

Design Standard

BS 6697

End Connection

ASME B16.5

Testing Standard

FCI 70 - 2

Face To Face

ISA - 75.03, IEC 534 - 3

Leakage

Class VI

Applications

Steam / Gas / Water & Air

Features & Benefits

1 – Available in 2/2 and 3/2 way options.

2 – Pneumatic Cylinder Operated.

3 – Provides reliable control for directing airflow in pneumatic systems.

4 – Built for long-term use with robust construction.

5 – Allows precise control of the flow of compressed air, ideal for automation and machinery applications.

6 – Compact and efficient design for easy integration into various systems.

7 – Typically constructed from high-quality metals or durable polymers for enhanced performance.

3/2 Way Pneumatic Cylinder Operated

Control Valve

Dimension Table

3/2 Way Pneumatic Cylinder Operated

Control Valve

Dimension Table
