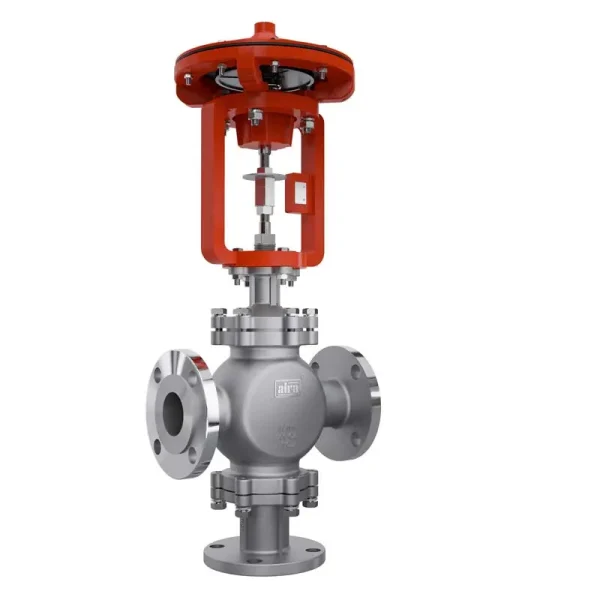

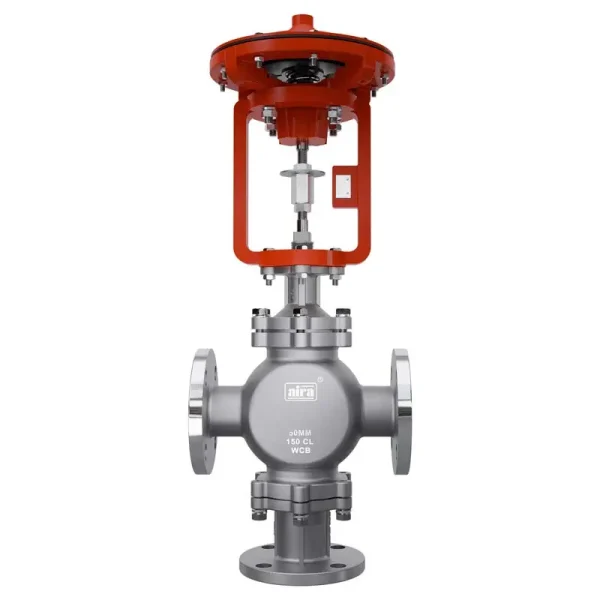

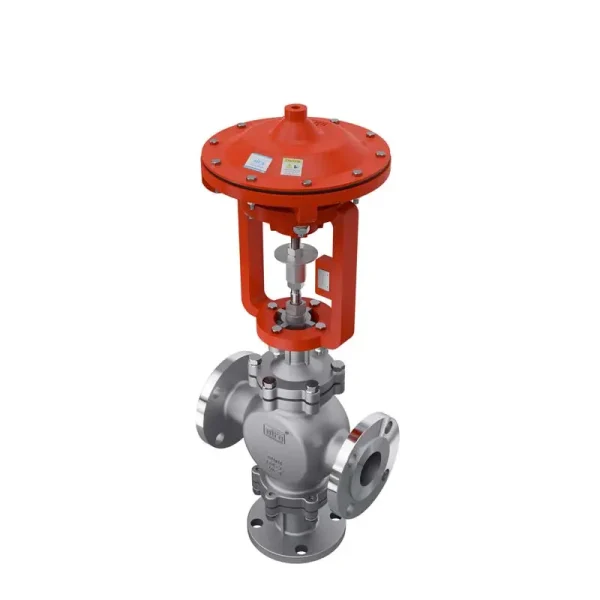

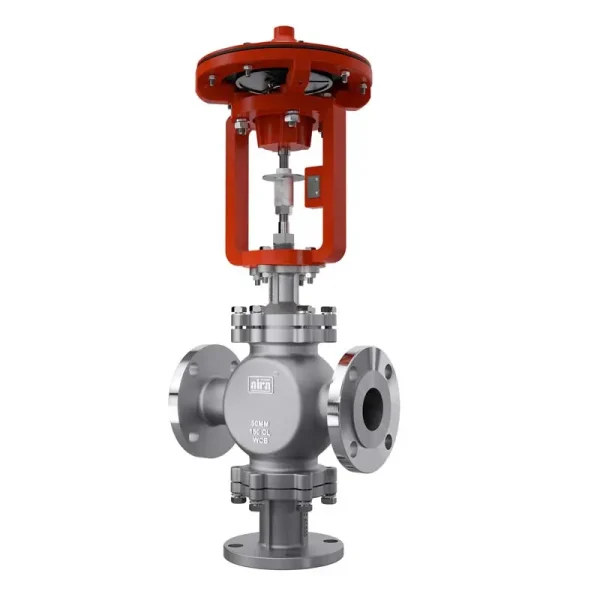

3-2 Way Low Temperature

On-Off Control Valve

Inquiry Now

Approvals

“aira” Offers 2/2 – 3/2 way pneumatic diaphragm operated on/off 220°C Control Valve.

Specification & Standard

Size Range

15MM To 150MM

Tempreature Range

Upto 220°C Max

Shutoff Rating

Tight Shut Off Leakage Class

Body Style

Soft

Flange Drilling

150#, 300#

Certification

IBR Approved

Body Materials

WCB / CF8 / CF8M

Stem Materials

S. S - 304 / S. S - 316

Seat Materials

PTFE / CFT / GFT

Plug Materials

S. S - 304 / S. S - 316

Design Standard

BS 6697

End Connection

Flanged End ASME B 16.5 CL 150 / 300 (600 Available On Request)

Testing Standard

FCI 70 - 2

Face To Face

ISA - 75.03, IEC 534 - 3

Leakage

CL VI for Soft Seating / FCI 70 - 2

Applications

Steam / Gas / Water & Air

Features & Benefits

1 – Excellent For On / Off Application.

2 – Long Lasting Diaphragm Material.

3 – Easy Maintenance.

4 – Economy Price.

5 – High Temperature 220 ºC.

3-2 Way Low Temperature

On-Off Control Valve

Dimension Table

3-2 Way Low Temperature

On-Off Control Valve

Dimension Table
