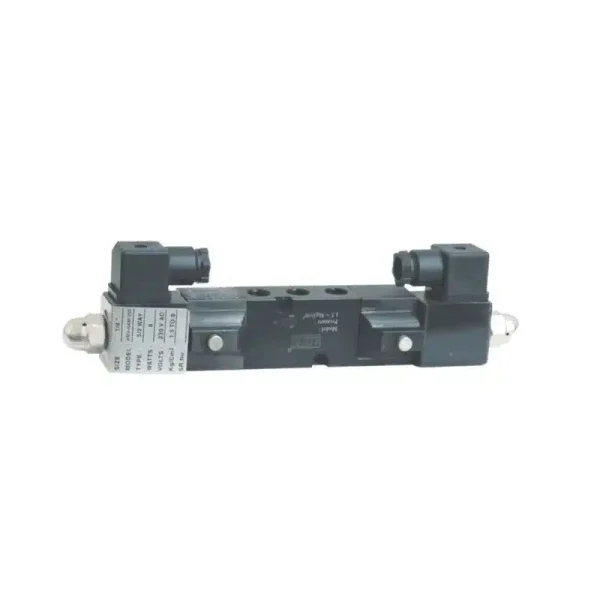

“aira” Offers 3/2 Way Convertible Poppet Type Namur Solenoid Valve Opens And Shuts By Given Electrical AC Or DC, Outputs Supply Air Pressure To Valve (Actuator) Or Changes The Output Port Direction.
Specification & Standard
Size Range
1/4”
Tempreature Range
-20° C to 70° C
Pressure Class
Upto 10 BAR
Body Material
Aluminium
Seals Material
NBR (Viton On Request)
Coil Voltage
12V, 24V, 48V, 110V, 230V, AC/DC
Features & Benefits
1 – Easy Replacement Of Coil As Both AC And DC Type Use Same Enclosure.
2 – Can Test The Operation In Manual Switch Without Power Source.
3 – High Durability As Valve Body Is Pneumatic Pressure Operating Type.
4 – Can Be Directly Mounted On An Actuator (NAMUR Design).
5 – Ideally Suited For Spring Return Actuator For On / Off Duty Dust Cap Fitted On Exhaust Ports.
6 – Interchangeable Of AC And DC Coils.
7 – Manual Over Ride Switch.
Get in touch with our team at +91 9099477256 to receive the Dimension Table
