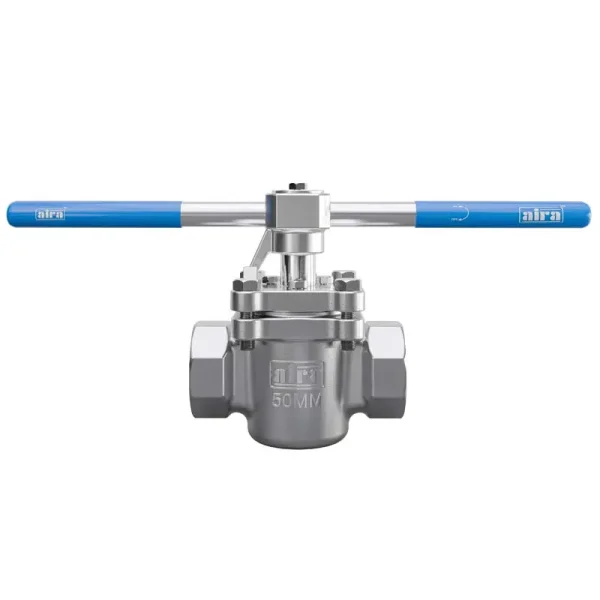

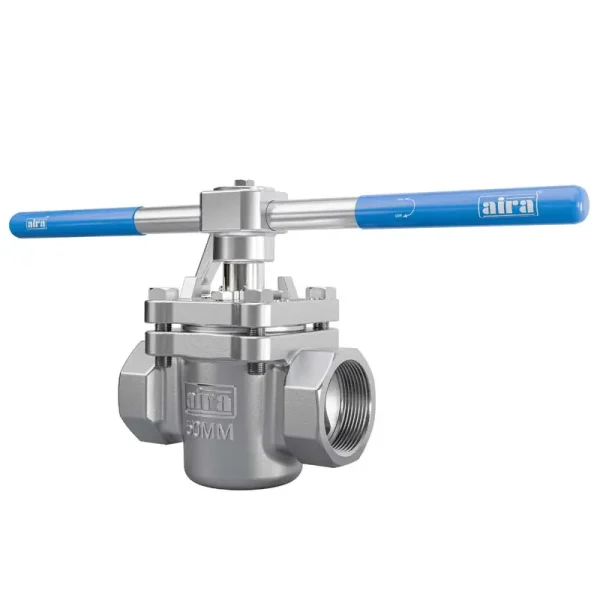

“aira” Plug Valves Are Designed To Offer Superior Performance In Various Industrial Applications. Design Inherent Reduction In Pressure Drop Leads To Higher Efficiency And Better Flow Rates. Long Service Life, Unmatched Sealing Capacity And Ease Of Maintenance Thanks To Ingenious Design Make The aira Plug Valves A Preferred Choice In Severe Service Conditions.
API 599/ BS 5353
API 598/ EN 12266-1
Class VI ISO - 5208
Screw End, BSP/NPT, Flanged, Flanged Type Reduce Bore, Jacketed Type Flanged End
1/2'' To 2''
-50' C To 300' For Soft Seated Valves. Contact Works For Special Requierment
Up to 10 Kg/Cm²
150#
Air / Water / Oil / Gas / Nitrogen & Chemical
CAST IRON(CI), DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL
CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M
PTFE, RPTFE, CFT, GFT, TFM-1600, AIRA-250
ASME B 16.5 Class 150#/ 300#
Design CE Approved, SIL3 Approved, IBR Approved, FIRE SAFE Approved, ISO Approved
ASME B 16.10
1 – Easy Operation 0° – 90°
2 – Compact And Robuts Body Design (One – Piece Cast Body)
3 – PTFE – Sleeve Entirely Retained By 360° Lips Around The Ports
4 – Secondary Seal At The Cover – Also In FIRE SAFE – Design Available (On Request)
5 – PTFE – Sleeve Acts As Primary Seal In The Waterway And To Atmoshere
6 – Conical Plug Shape Grants Low Operation Torques And Vertical Adjustment Possibility
7 – Low Weight
Fire Safe Design

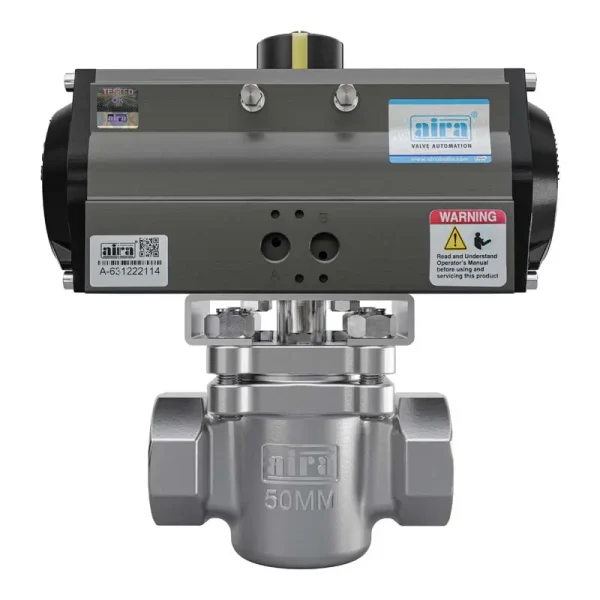

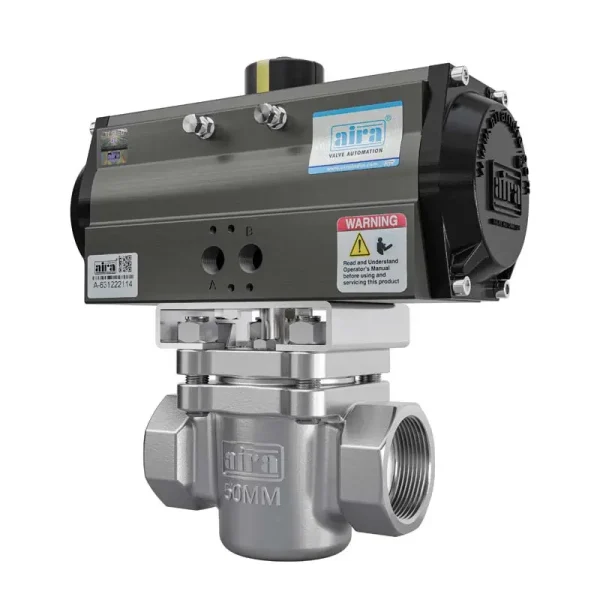

Direct Mounting As Per ISO 5211
