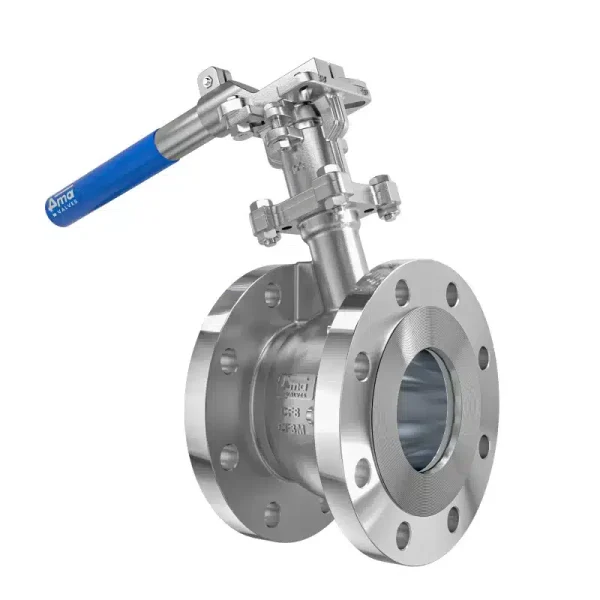

2 way Flush Bottom Full Bore Ball Valve

Name: 2 way Flush Bottom Full Bore Ball Valve
Brand: Aira Euro

Inquiry Now

Approvals

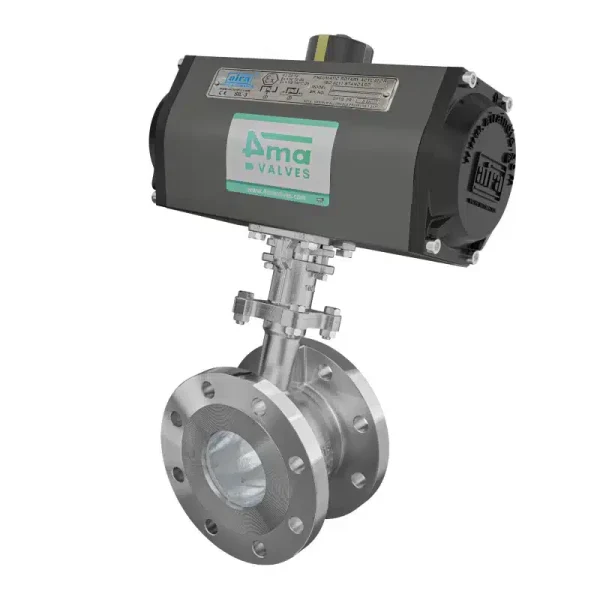

Aira Euro Automation has expertise in Flush Bottom Ball valve manufacturing and we have a Huge range of Ball valves. We have inhouse production as a result we can maintain quality in our products.In the making of the Pneumatic Rotary Actuator operated Flush Bottom Ball valve, we use standard CE approved Pneumatic Rotary Actuator and High graded materials. We use WCB / CF8 / CF8M / CF3M materials For Body, CF8 / CF8M / CF3M materials for Ball, PTFE for Seals, and PTFE / GFT / CFT / PEEK / TFM materials for Body Seat. It is available in 1”X1” to 4”X4” inches in size, The pressure up to 10 BAR and temperature up to 180°C is favorable for this valve. It has 150# Class flanged end connectors.Our Flush Bottom Ball Valve is designed for use in several conditions such as application: filter dryer, vacuum dryer, stirrer vessel, rector, chemical, pharmaceutical, food, etc.

Specification & Standard

Size Range

1.1/2 To 6"

Tempreature Range

Upto 180 °C / 250 °C

Pressure Class

Upto 10 Kg/cm²

End Connection

Flanged End Class 150#

Body Material

CF8 / CF8M / CF3M

Seals Material

PTFE / CFT / GFT / PEEK / TFM

Media

Air / Water / Oil / Gas & Chemical

Features & Benefits

1. Full Bore Design: The valve has a full bore or straight-through flow path, minimizing pressure drop and ensuring maximum flow capacity, ideal for fluid or slurry applications.

2. Ball Valve Mechanism: The valve uses a spherical ball with a hole in the center, which rotates to control the flow. The ball is durable, providing reliable sealing and control.

3. Reduced Pressure Drop: The full bore design allows for smooth, unrestricted flow, reducing the pressure drop and enhancing the efficiency of the system.
