2 Piece

Trunnion Mounted Ball Valve

Inquiry Now

2 Piece Trunnion Mounted Ball Valve

Inquiry Now

Approvals

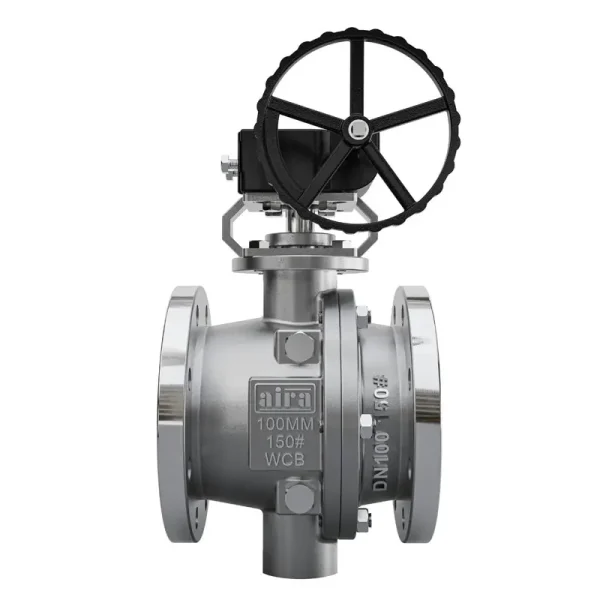

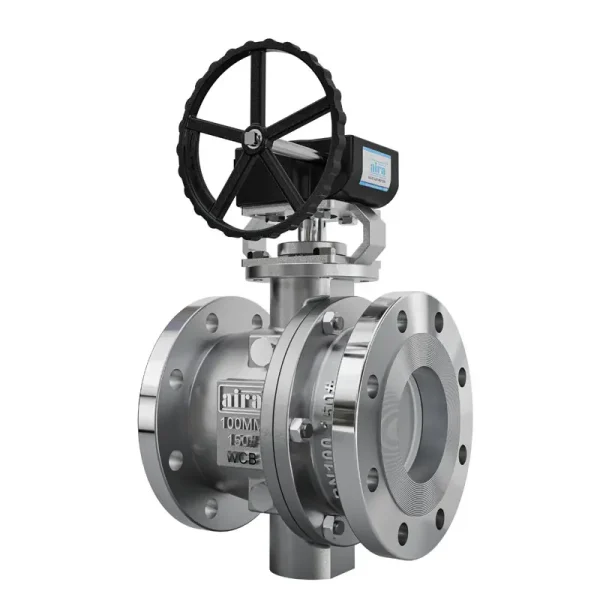

Aira Euro Offer Gear Operated 2 Piece Design PTFE Trunnion Inconel Spring Loaded Trunnion Mounting 2 Way Ball Valve Flanged 150# with Hollow & Solid Ball

Specification & Standard

Basic Design

API 6D/ BS EN 17292

Face To Face Dimensions

API 6D/ ASME B 16.10 - 150#/ 300#/ 600#

End Connection

ASME B 16.5

Size Range

2" to 20" Flanged

Tempreature Range

PTFE : upto 180°C

Pressurre Class

150#, 300#, 600#

Media

Air/ Water/ Oil & Gas

Stem Material

AISI 410 , SS 304 , SS 316, SS 304l, SS 316l, DUPLEX 2205, DUPLEX 2507, MONEL

Seat Material

PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK

Port Diameter

API 6D/ BS EN 17292

Wall Thickness

ASME B16.34/ BS EN 17292/ BS EN-12516-2

Fugitive Emission Testing

ISO 15848-1

Fire Safe Testing

API 607 7th Edition

Body Material

WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL, DUCTILE IRON, S.G IRON, INCONEL, LCB

Ball Material

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Ball Type

Solid Trunnion Mounted Ball Valve 150#/ 300#/ 600#

Flange Drilling

Asme B 16.5 Class 150# / 300#/ 600#

Certification

Design CE Approved, POD, SIL 3, Fire Safe, API 6D, IBR

Features & Benefits

1- Most Popular & Reliable Valve For Isolation & Shut Down Application.

2- Structure : 2 Piece & 3 Piece Bolted Body, Connector & Bonnet.

3- Block & Bleed / Double Block & Bleed Function.

4- Inherently No Pressure Drop.

5- Locking Provision & Position Of Obturator.

6- Stem Extension.

7- Lifting Lugs.

8- QSL-2 / QSL-3 / QSL-3G / QSL-4 / QSL-4G.

Direct Mounting As Per ISO 5211

Anti Static Mechanism

Fire Safe Design

2 Piece

Trunnion Mounted Ball Valve

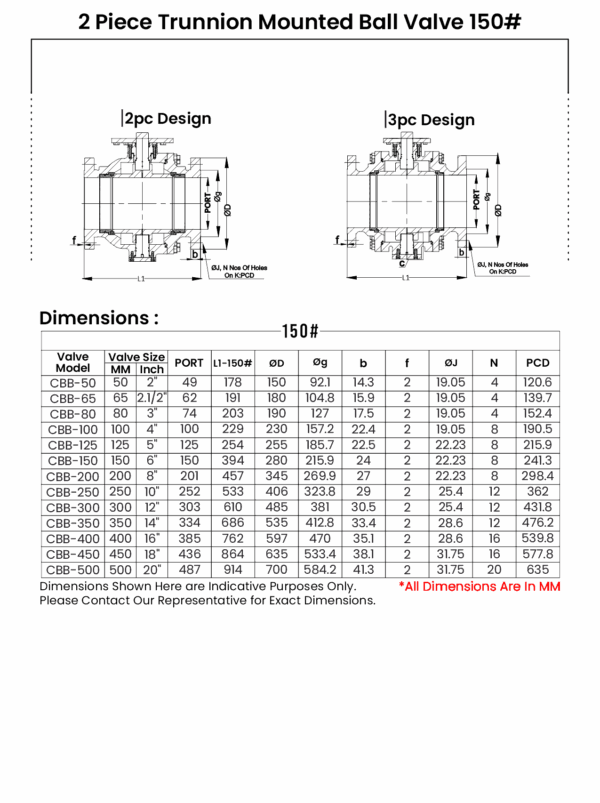

Dimension Table

2 Piece

Trunnion Mounted Ball Valve

Dimension Table

ADDONS

Extended Shaft
