2 Piece Reduce Bore

Flanged End Ball Valve

Size Range
3/4" To 14" Flanged 150#
Temperature Range
PTFE : Upto 180°C RPTFE/ TFM-220C°
Working Pressure
Upto 10 kg/cm²
Inquiry Now

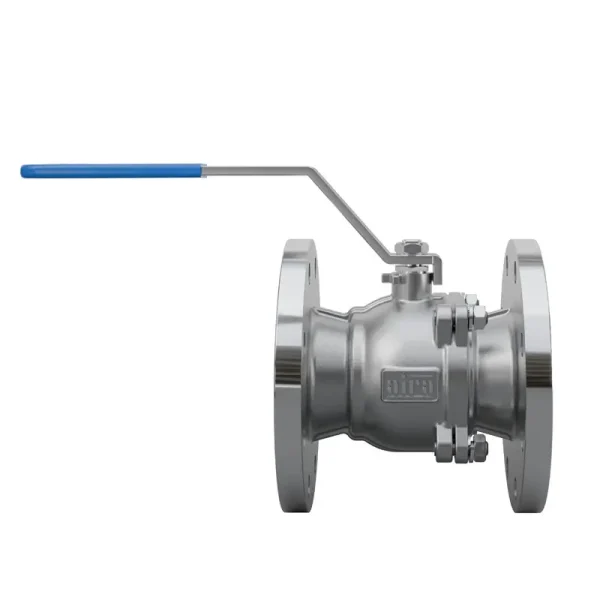

2 Piece Reduce Bore Flanged End Ball Valve

Size Range
3/4" To 14" Flanged 150#
Temperature Range
PTFE : Upto 180°C RPTFE/ TFM-220C°
Working Pressure
Upto 10 kg/cm²
Inquiry Now

Approvals

“aira” Offers Two Piece and Three Piece Design Reduce Bore Ball Valve, Engineered For Multiple On/ Off Operations In The Down Stream.

Specification & Standard

Design & Manufacturer

ASME B 16.34/ BS EN ISO 17292

Valve Face To Face Dimension

ASME B 16.10/ BSEN ISO 17292

Inspection And Testing

API 598/ ISO-5208/ BS EN 12266-1

Size Range

3/4" To 14" Flanged 150#

Tempreature Range

-50' C To 300' For Soft Seated Valves. Contact Works For Special Requierment

Ball Material

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Ball Type

Hollow, Reduce, Solid

Flange Drilling

Asme B 16.5 Class 150#/ 300#/ Din/ Jis

Leakage Class

ISO 5208 Class VI/ FCI - 70 - 2/ ASME B 16, 16. 104 (BUBBLE TIGHT SHUT OFF)

End Connection

ASME B 16.5 CLASS 150 FOR FLANGE

Pressurre Class

150#

Media

Air / Water / Oil & Gas

Body Material

CAST IRON(CI),DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL

Stem Material

Aisi 410, Ss 304, Ss 316, Ss 304l, Ss 316l, Duplex 2205, Duplex 2507, Monel

Seat Material

PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK

Certification

Design Ce Approved, Sil3 Approved, Ibr, Pod, Fire Safe

Features & Benefits

1- High Cycle Life.

2- Antistatic Design.

3- Blow Outproof Stem.

4- Locking Handle Available.

5- ISO 5211 Mounting Pad Available.

6- V-type Cheuron Gland Packing, Which Leads To Zero Leak
After Thousands of Cycle.

Anti Static Mechanism

Fire Safe Design

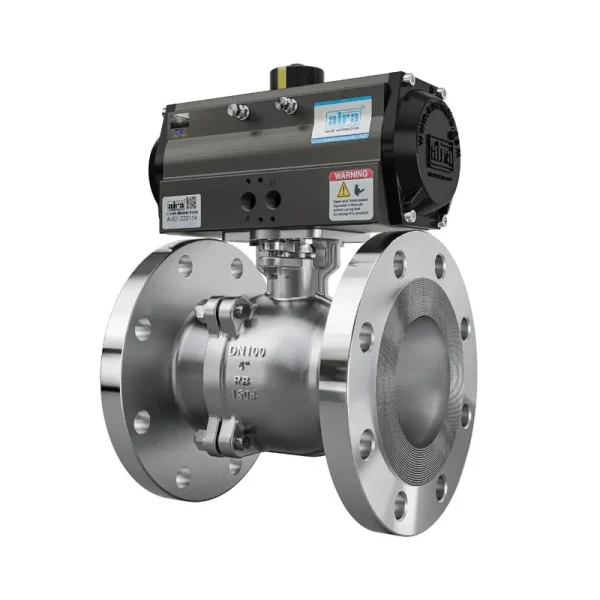

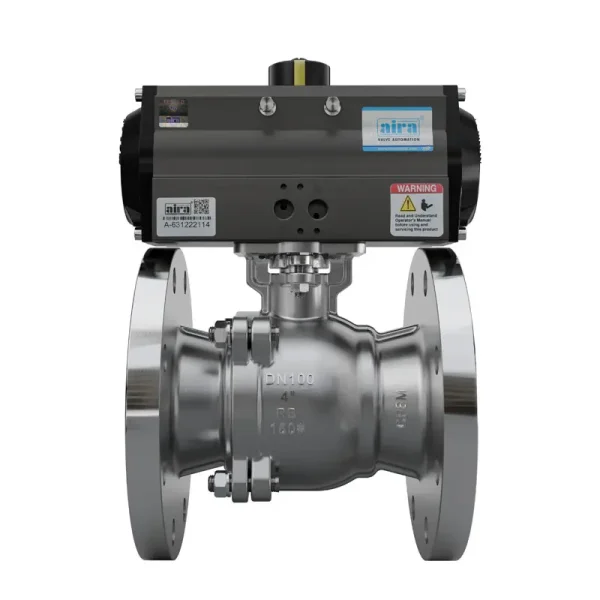

Direct Mounting As Per ISO 5211

2 Piece Reduce Bore

Flanged End Ball Valve

Dimension Table

2 Piece Reduce Bore

Flanged End Ball Valve

Dimension Table
