2 Piece

Flanged End Ball Valve 600#

Size Range
1/2" To 2" Floating, 2.1/2'' To 6'' Trunnion
Temperature Range
For, CFT & GFT Upto 200°C For, PEEK Upto 250°C
Working Pressure
As Per 600#
Inquiry Now

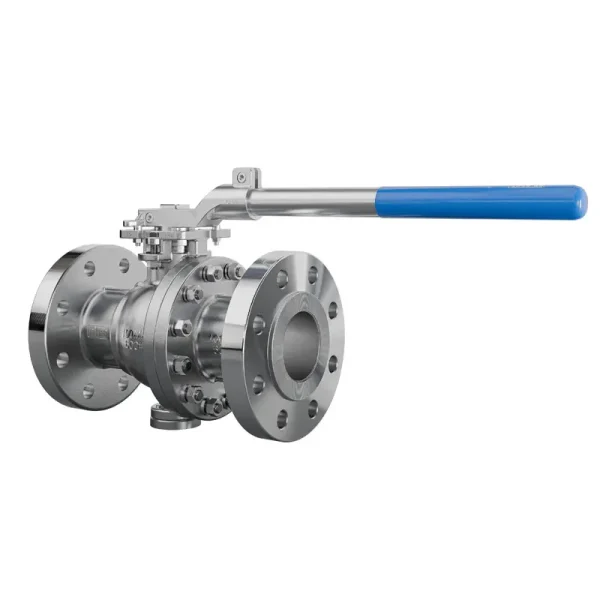

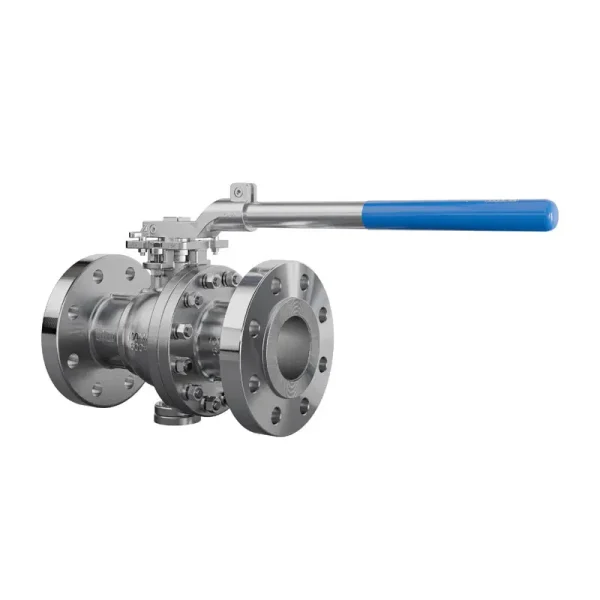

2 Piece Flanged End Ball Valve 600#

Size Range
1/2" To 2" Floating, 2.1/2'' To 6'' Trunnion
Temperature Range
For, CFT & GFT Upto 200°C For, PEEK Upto 250°C
Working Pressure
As Per 600#
Inquiry Now

Approvals

“aira” Offers Two Piece Design Valve, Engineered For Multiple On/ Off Operations In The Down Stream.

Specification & Standard

Design & Manufacturer

ASME B 16.34/ BS EN ISO 17292

Valve Face To Face Dimension

ASME B 16.10/ BS EN ISO 17292

Inspection & Testing

API 598/ ISO - 5208/ BS EN 12266 - 1

Size Range

1/2" To 2" Floating, 2.1/2'' To 6'' Trunnion

Tempreature Range

-50' C To 300' For Soft Seated Valves. Contact Works For Special Requierment (On Request)

Ball Material

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Ball Type

Hollow & Solid

Flange Drilling

Asme B 16.5 Class 150#/ 300 #/ Din/ Jis

Leakage Class

ISO 5208 Class VI/ FCI - 70- 2/ ASME,ANSI B 16,16.104

End Connection

ASME B 16.5 Class 600

Pressurre Class

600#

Media

Air/ Water/ Oil & Gas Etc…

Body Material

DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL.

Stem Material

Aisi 410, Aisi 304, Aisi 316, Aisi 304l, Aisi 316l, Duplex 2205, Duplex 2507, Monel

Seat Material

PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK

Certification

Design Ce Approved, Sil3 Approved, Pod

Features & Benefits

Fully Compliant To ASME B16.34 & API 608, ISO 5211 Mounting Pad Bolt Pattern, Slot Vented Ball For Thermal Expansion, Anti Static Grounded Ball & Stem, Blow-Out Proof Stem Design, Ring Joint , Tonge & Grove Joint Flange Available, Also Manufacture Special Grade MOC Like Supen Duplex,Hast Alloy Etc, Ball Seal: RPTFE, TFM, PEEK.

Anti Static Mechanism

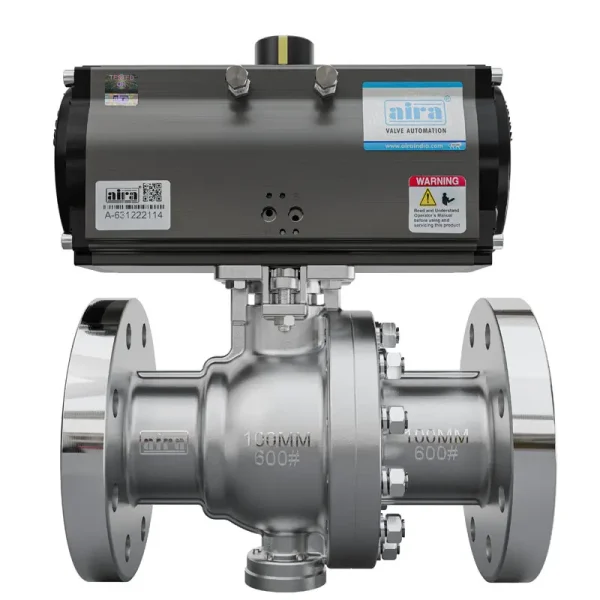

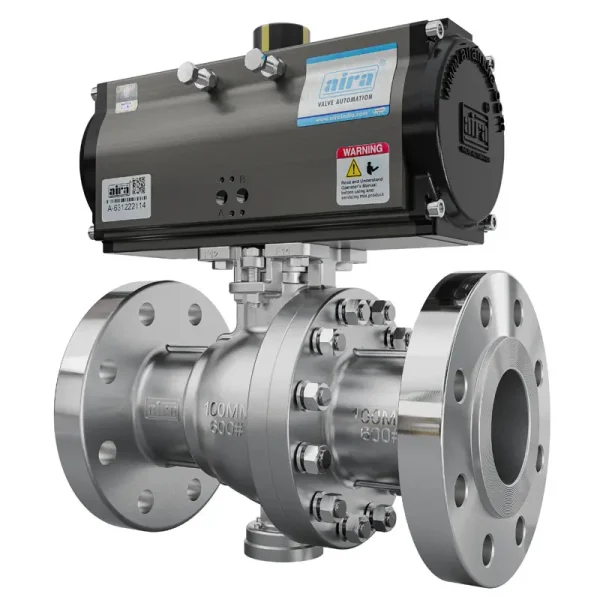

Direct Mounting AS Per ISO 5211

2 Piece

Flanged End Ball Valve 600#

Dimension Table

2 Piece

Flanged End Ball Valve 600#

Dimension Table
