2 Piece

Flanged End Ball Valve

Size Range
1/2" To 14" Flanged 150# / 300#
Temperature Range
PTFE : Upto 180°C / PEEK : 250°C RPTFE : Upto 220°C / AIRA250"
Working Pressure
Up to 10 Kg/Cm²
Inquiry Now

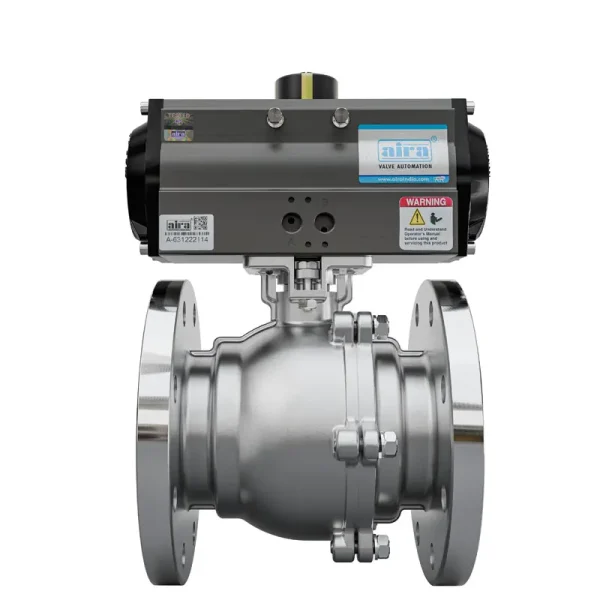

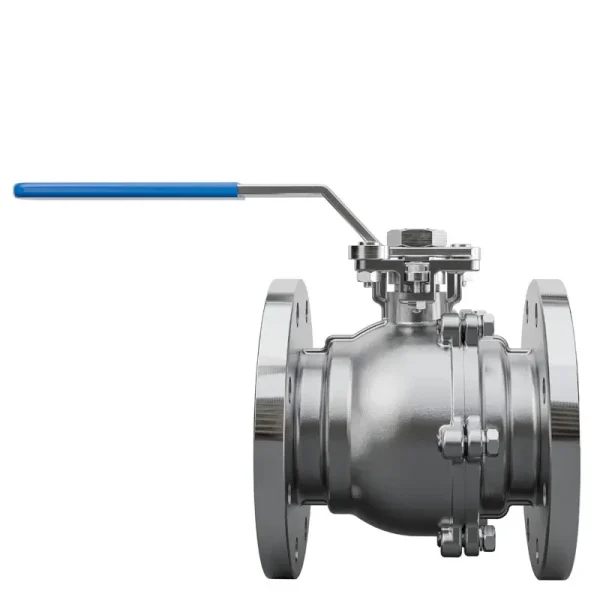

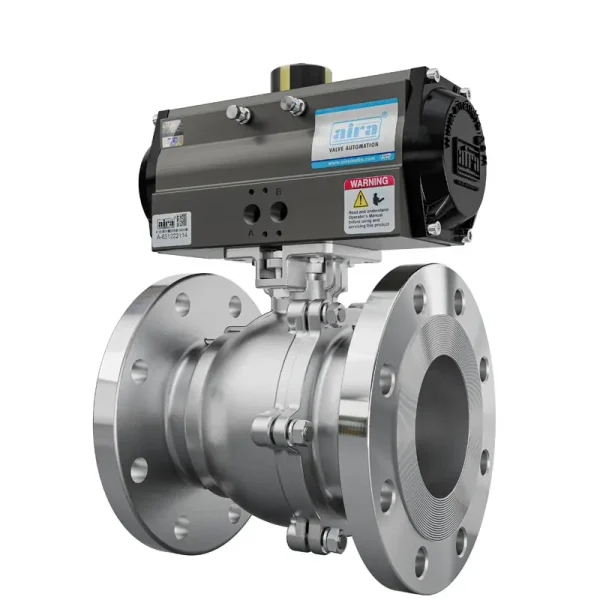

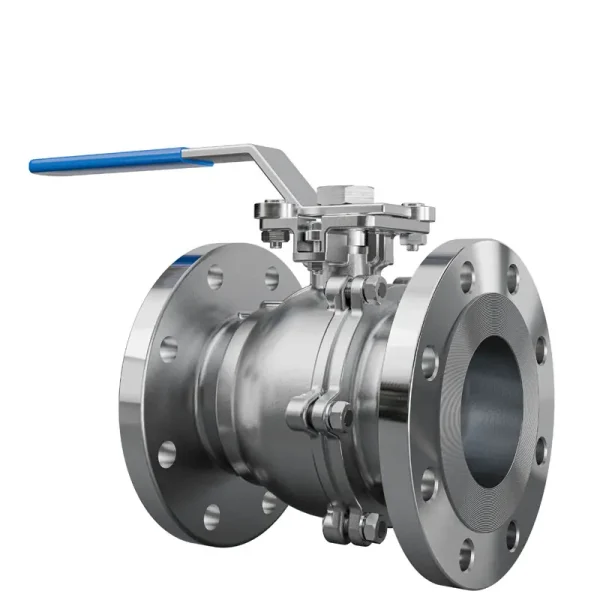

2 Piece Flanged End Ball Valve

Size Range
1/2" To 14" Flanged 150# / 300#
Temperature Range
PTFE : Upto 180°C / PEEK : 250°C RPTFE : Upto 220°C / AIRA250"
Working Pressure
Up to 10 Kg/Cm²
Inquiry Now

Approvals

“aira” Offers Investment Casting WCB / CF8 / CF8M / CF3M Ball Valve Floating In Two Piece Design. Engineered For Multiple On/Off Operations In The Down Stream.

Specification & Standard

Design & Manufacturer

ASME B 16.34 / BS EN ISO 17292

Valve Face To Face Dimension

As Per Manufacturer Standard

Inspection And Testing

API 598/ ISO - 5208/ BS EN 12266 - 1

Size Range

1/2" To 14" Flanged

Media

Air/ Water/ Oil & Gas

Body Material

CAST IRON(CI), DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M , SS 304L , DUPLEX , HAST ALLOY, MONEL CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M HOLLOW, REDUCE, SOLID

Seat Material

PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK

Flange Drilling

Asme B 16.5 Class 150#/ 300#/ Din/ Jis

Leakage Class

ISO 5208 Class VI / FCI - 70- 2/ ASME, ANSI B 16,16.104"

End Connection

ISO 7-1 FOR BSPT / ASME B 1.201 FOR NPT FOR S/E

Tempreature Range

-50' C To 300' For Soft Seated Valves. Contact Works For Special Requierment

Pressurre Class

150#, 300#

Ball Material

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Ball Type

Hollow, Solid

Stem Material

Aisi 410, Ss 304, Ss 316, Ss 304l, Ss 316l, Duplex 2205, Duplex 2507, Monel

Features & Benefits

High Cycle Life, Antistatic Design & Fire Safe Design As Per API 607, Blow Outproof Stem, Locking Handle Available, ISO 5211 Mounting Pad Available, V-type Cheuron Gland Packing, Which Leads To Zero Leak After Thousands of cycle

Anti Static Mechanism

Direct Mounting As Per ISO 5211

Fire Safe Design

2 Piece

Flanged End Ball Valve

Dimension Table

2 Piece

Flanged End Ball Valve

Dimension Table
