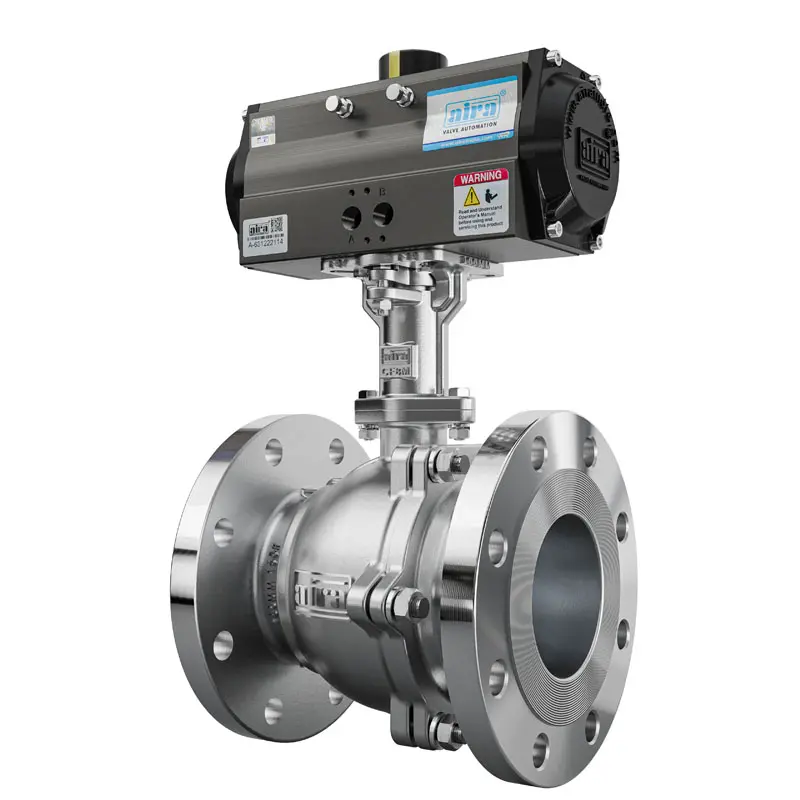

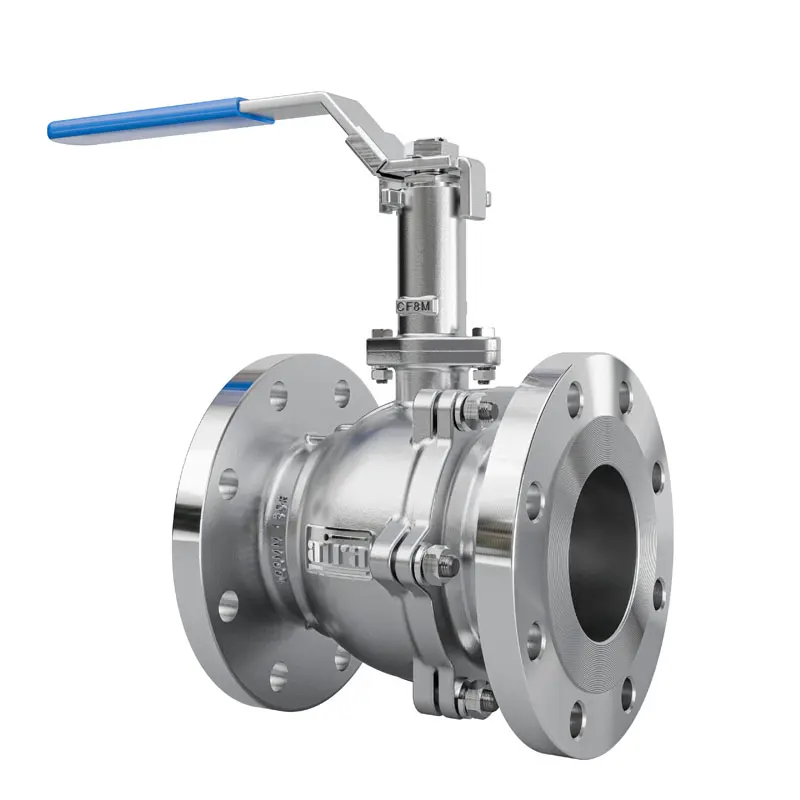

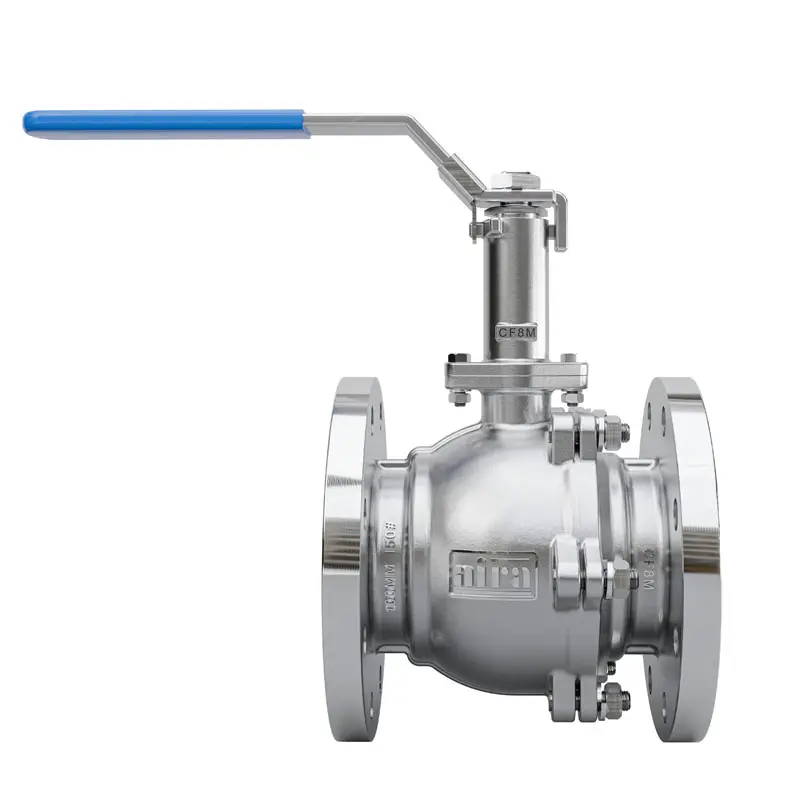

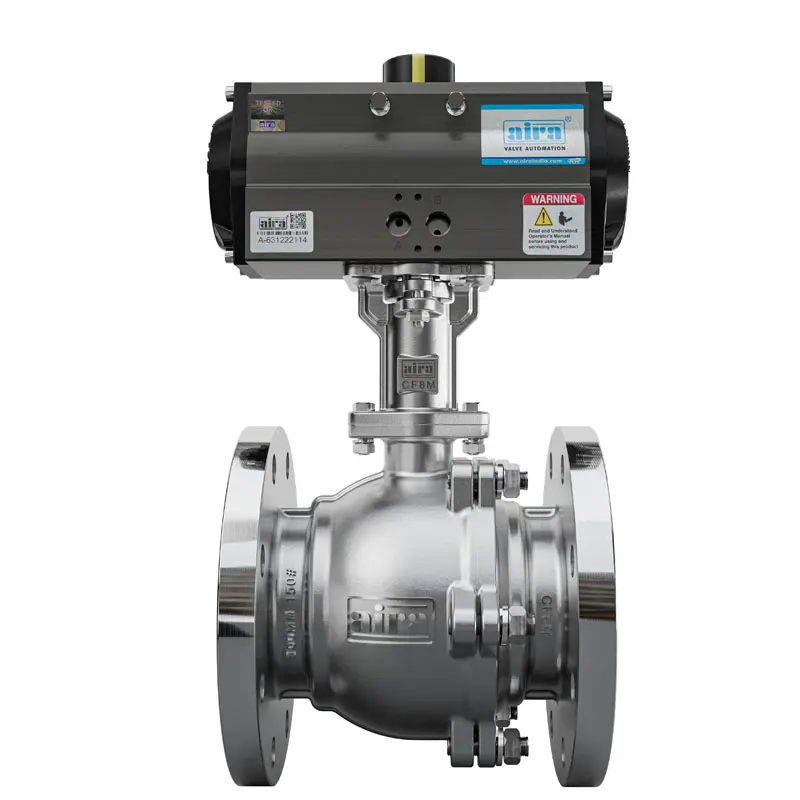

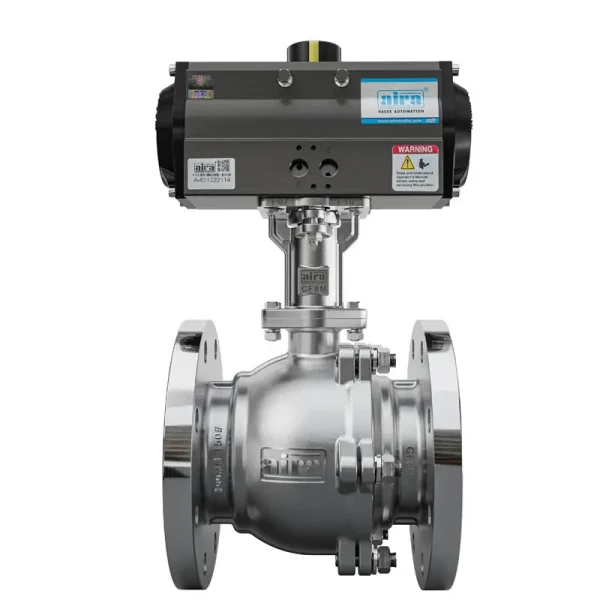

2 Piece Extended Shaft Flanged End Ball Valve

Inquiry Now

Approvals

“aira” Offers Manual & Automation Operated Extended Shaft ‘cryogenic’ Application Floating Ball Valve. Extended Shaft Ball Valve Designed For Using In The Several Conditions Such As Cryogenic Gas Systems, Nitrogen Injection, Oil Recovery, Air Separation Plants, Steel Plants, Heat Treatment.

Specification & Standard

Design & Manufacturer

ASME B 16.34 / BS EN ISO 17292

Valve Face To Face Dimension

ASME B 16.10 / BS EN ISO 17292

Inspection And Testing

API 598/ ISO-5208/ BS EN 12266-1

Size Range

1/2" To 8" Flanged

Pressurre Class

150#

Body Material

CAST IRON(CI),DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONELCF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Steam Material

Aisi 410, Ss 304, Ss 316, Ss 304l, Ss 316l, Duplex 2205, Duplex 2507, Monel

Seat Material

PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK

Leakage Class

ISO 5208 Class VI/ FCI - 70 - 2/ ASME B 16, 16. 104 (BUBBLE TIGHT SHUTOFF)

End Connection

ISO 7-1 FOR BSPT / BSP/ ASME B 1.201 FOR NPT FOR S/E ASME 16.11 FOR SOCKET WELD

Tempreature Range

-50' C To 300' For Soft Seated Valves. Contact Works For Special Requierment

Media

Air/ Water/ Oil & Gas

Ball Material

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Ball Type

Hollow & Solid

Flange Drilling

Asme B 16.5 Class 150#/ 300#/ Din/ Jis

Certification

Design Ce Approve ,Pod

Features & Benefits

Thrice Types Of Extension Bonnet Lenghts Available To Optimize
The Location Of The Gland Packing At Ambient Temperature Thus Preventing Freeze-damage By Low Temperature Fluid, Cavity Pressure Self Relief Construction In Valve, Cheuron Seal Design Minimizes Leakage After Thousand of Cycles, Low Operating Torque For Smooth Operations, Fire Safe Design Available For Flammable Applications, Fugitive Emissions Control For Flammable And Non-flammable Applications.
