2-2 Way

Semi Pilot Solenoid valve

Size Range
1/2" To 2" Screwed / Flanged / Triclover End
Temperature Range
Upto 85°C (High Temperature On Request)
Working Pressure
0 To 5 Bar
Inquiry Now

2-2 Way Semi Pilot Solenoid valve

Size Range
1/2" To 2" Screwed / Flanged / Triclover End
Temperature Range
Upto 85°C (High Temperature On Request)
Working Pressure
0 To 5 Bar
Inquiry Now

Approvals

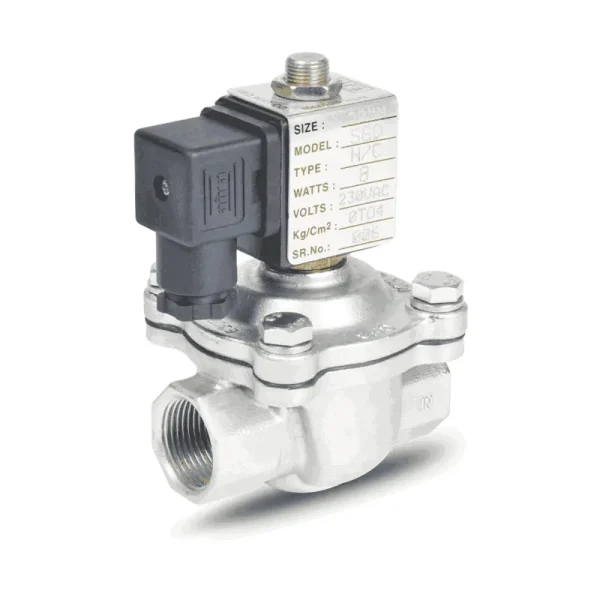

“aira” Offers 2/2 Way Semi Pilot, high performance diaphragm type solenoid valve, for high volume and low pressure application in Air, Gas, Water, Vacuum, Light oil, Corrosive Fluids available in normally closed & normally open design.

Specification & Standard

End Connection

S/E, F/E 150# / TC End

Size Range

1/2" To 2" Screwed / Flanged / Triclover End

Tempreature Range

Upto 85°C (High Temperature On Request)

Pressurre Class

0 To 5 Bar

Media

Air, Gas, Water, Light Oil, Vacuum & Corrosive

Body Material

CF8, CF3M, CF8M

Seat Material

NBR, Viton

Certification

CE

Features & Benefits

1 – 2/2 Way Design: Manages fluid flow with a two-port configuration, providing on/off control.

2 – Normally Closed/Normally Open Options: Available in both normally closed (NC) and normally open (NO) configurations to suit different automation needs.

3 – Screwed Connections: Features threaded fittings for secure and easy installation.

4 – Automation Ready: Electrically operated for precise and reliable control in automated systems.

5 – Durable Construction: Made from high-quality materials like brass or stainless steel for enhanced durability and resistance to wear and corrosion.

6 – Compact and Space-Efficient: Designed to fit in tight spaces while delivering effective performance.

7 – Versatile Fluid Handling: Suitable for various fluids, including air, water, and chemicals.

8 – Low Maintenance: Engineered for minimal upkeep, reducing maintenance costs and downtime.

9 – Fast and Reliable Switching: Ensures quick and dependable actuation for efficient system operation.

2-2 Way

Semi Pilot Solenoid valve

Dimension Table

2-2 Way

Semi Pilot Solenoid valve

Dimension Table
