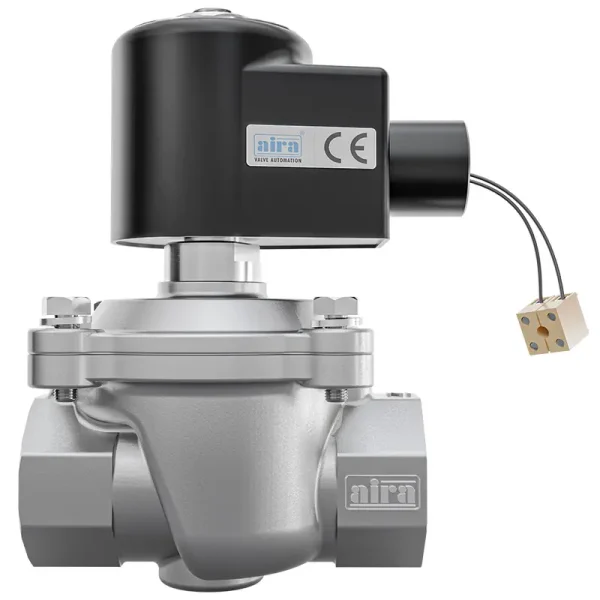

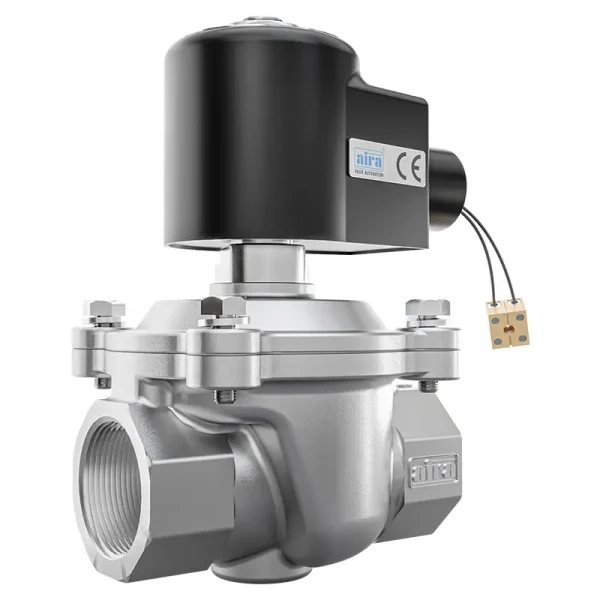

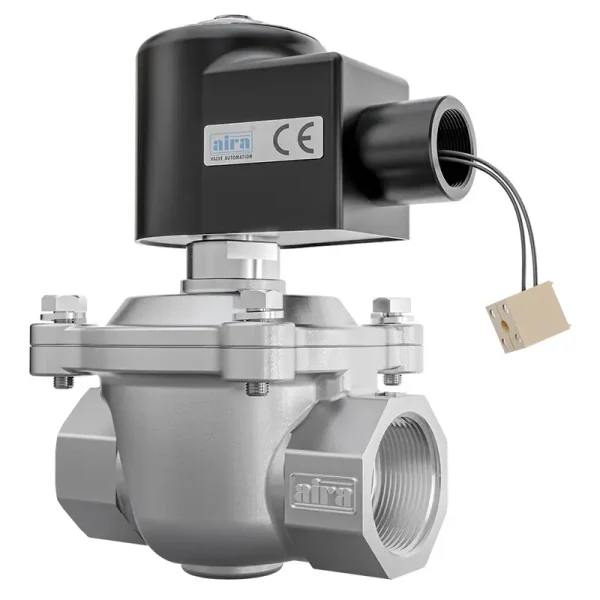

2-2 Way Semi Lift Diaphragm Type Screwed Solenoid Valve

Size Range
1/2" To 4"
Temperature Range
Upto 130°C
Working Pressure
0 To 5 Kg/Cm²
Inquiry Now

Approvals

“aira” Offers reliable on/off control with screwed connections and options for normally closed or normally open configurations, ideal for automated systems.

Specification & Standard

Size Range

1/2" To 4"

Tempreature Range

Upto 130°C

Pressure Class

0 To 5 Kg/Cm²

End Connection

Screwed / BSP

Media

Air, Water, Oil & Gas

Body Material

CF8

Certification

CE

Features & Benefits

1 – 2/2 Way Design: Manages fluid flow with a two-port configuration for efficient on/off control.

2 – Normally Closed/Normally Open: Available in both NC and NO configurations to meet different application needs.

3 – Screwed Connections: Threaded fittings ensure secure and straightforward installation.

4 – Automation Ready: Electrically actuated for precise and reliable control in automated systems.

5 – Durable Construction: Built from high-quality materials such as brass or stainless steel for long-term durability and corrosion resistance.

6 – Compact Size: Space-efficient design suitable for various installation environments.

7 – Versatile Fluid Compatibility: Handles a range of fluids, including air, water, and chemicals.

8 – Low Maintenance: Designed for minimal upkeep, reducing maintenance needs and operational costs.

9 – Fast Actuation: Provides quick and consistent switching for effective system performance.

Get in touch with our team at +91 9099477256 to receive the Dimension Table
