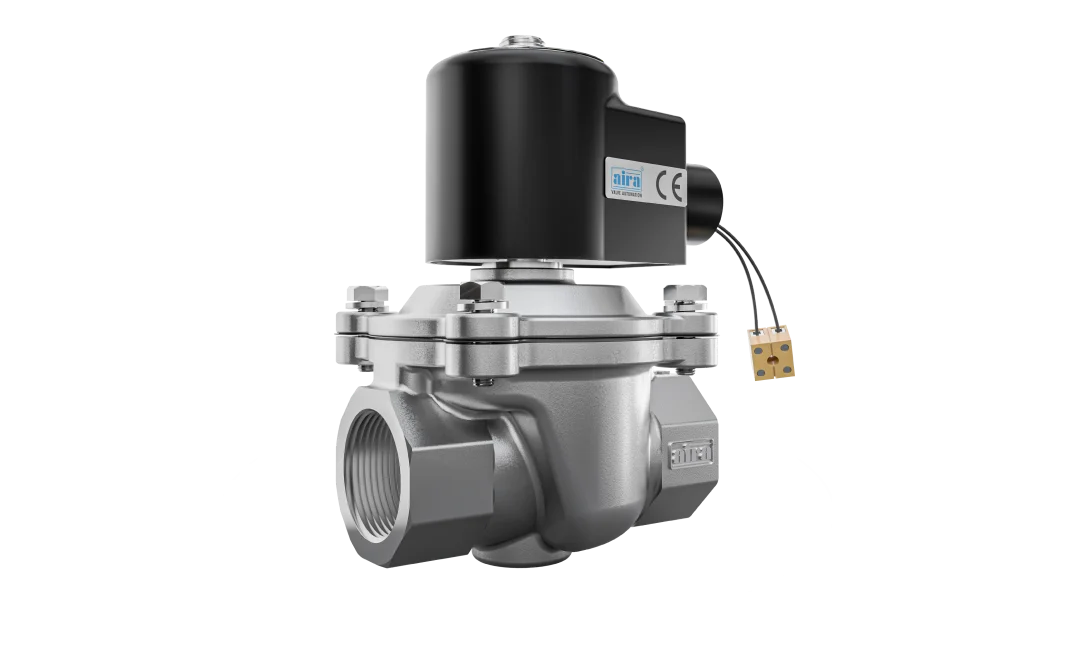

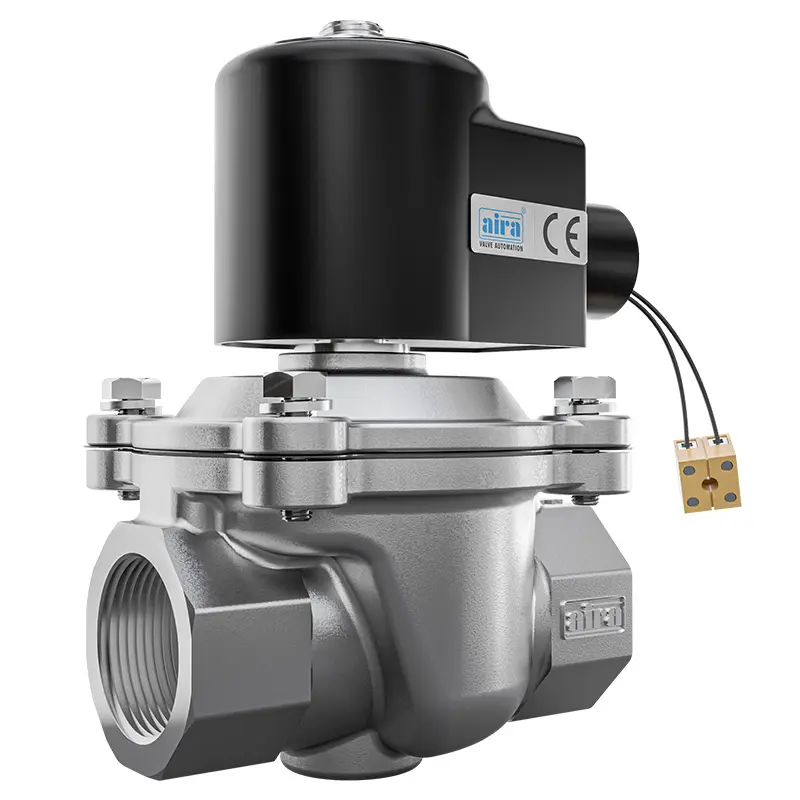

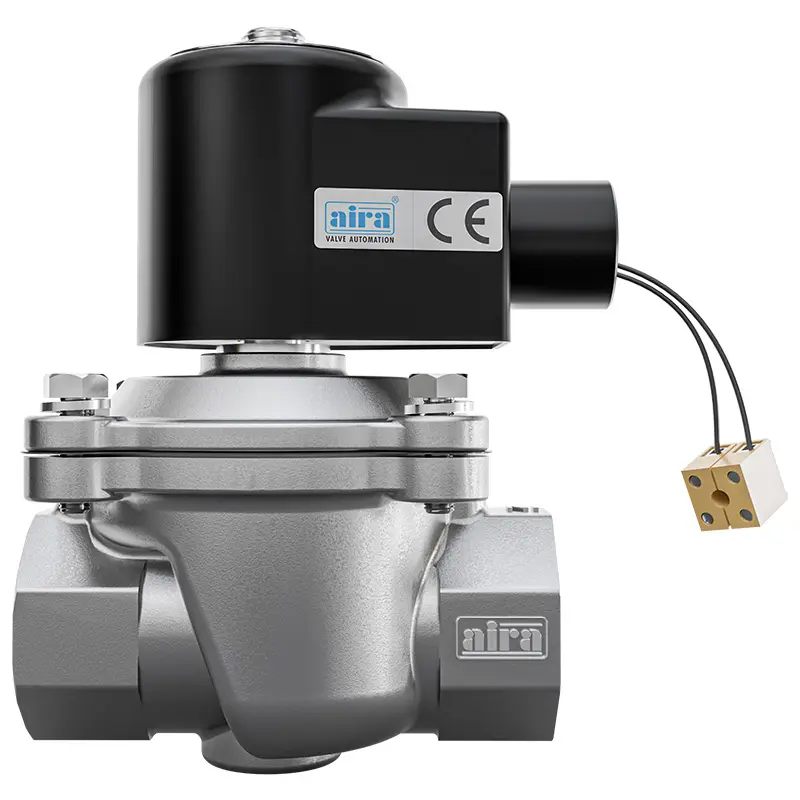

2-2 Way Semi Lift Diaphragm Screwed Low Pressure Solenoid Valve

Inquiry Now

Approvals

“aira” Offers 2/2 way semi Lift, high performance diaphragm type solenoid Valves, for high volume and low pressure application in air, gas, water, vacuum, light oil, corrosive fluids. available in normally close and normally open design.

Specification & Standard

Size Range

3/8" To 4" Screwed End

Tempreature Range

85°C Max. (High Temperature On Request)

Pressurre Class

0 To 5 BAR

End Connection

Screwed End 150#

Media

Vaccum Palnts, Pump Seal Water, Low Pressure Water

Body Material

CF8, CF3M, CF8M

Seat Material

NBR, Viton, Hi-Netra

Certification

Features & Benefits

1 – 2/2 Way Design: Manages fluid flow with a two-port configuration for reliable on/off control.

2 – Normally Closed/Normally Open Options: Available in both normally closed (NC) and normally open (NO) versions to fit different system requirements.

3 – Screwed Connections: Features threaded fittings for easy, secure installation.

4 – Automation Ready: Electrically actuated for precise and automated operation.

5 – Durable Construction: Made from high-quality materials like brass or stainless steel, ensuring long-term performance and resistance to corrosion.

6 – Compact and Efficient: Designed to perform well in space-constrained environments while maintaining reliability.

7 – Versatile Fluid Compatibility: Suitable for a wide range of fluids, including air, water, and chemicals.

8 – Low Maintenance: Engineered for minimal upkeep, reducing maintenance needs and operational costs.

9 – Fast and Reliable Switching: Ensures quick response times for effective system control.
