2/2 Way

Piston Steam & High Temperature Pilot Screwed Solenoid Valve

Inquiry Now

Download Catalog Watch Video

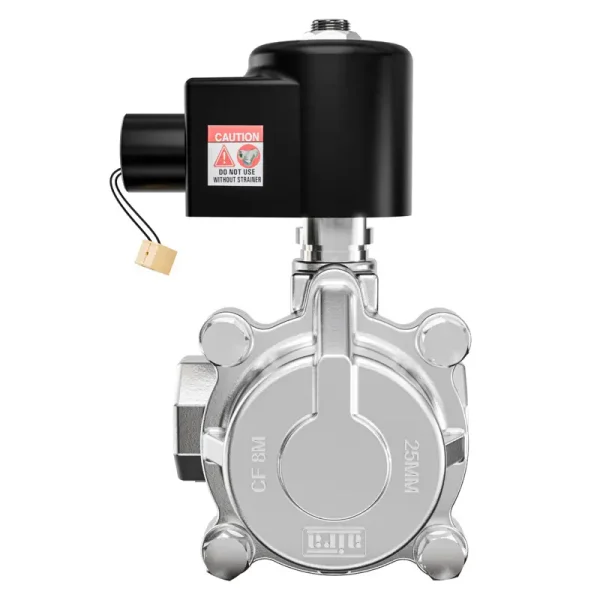

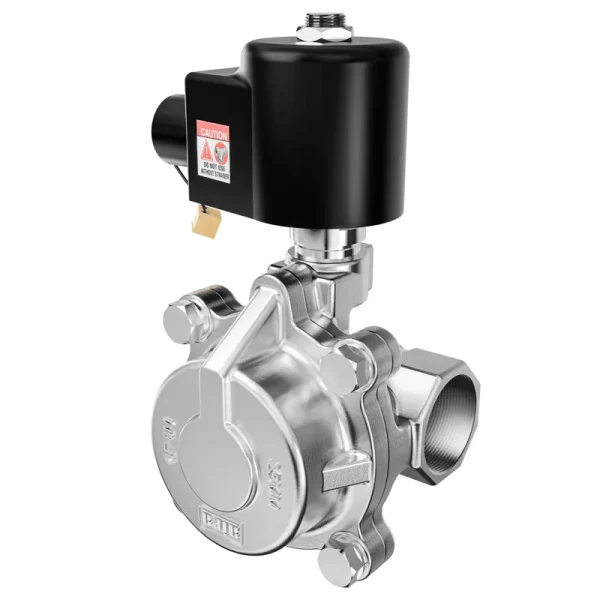

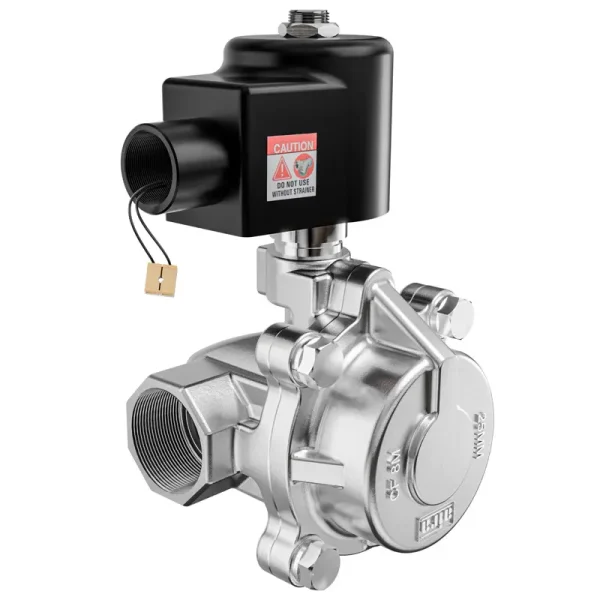

2/2 Way Piston Steam & High Temperature Pilot Screwed Solenoid Valve

Inquiry Now

Download Catalog Watch Video

Approvals

“aira” Offers HIGH FLOW piston type solenoid valves, are specially engineered in the construction of Investment Cast CF8 / CF8M / CF3M body for multiple and long lasting operations, especially in STEAM & HIGH Temperature FLUIDS. Valves for the inflammable media / environment / Flameproof / Explosion Proof solenoid coil are available in such application.

Specification & Standard

Size Range

1/4" To 4" Screwed

Tempreature Range

Upto 180°C

Pressurre Class

0 To 5 Bar

End Connection

Screwed End

Media

Hot Water, DRX Steam

Body Material

CF8, CF3M, CF8M

Seat Material

PTFE, Viton

Certification

Features & Benefits

1 – 2/2 Way Design: Provides on/off control with a two-port configuration for managing fluid flow.

2 – Normally Closed/Normally Open: Available in both NC and NO versions to fit various operational needs.

3 – Screwed Connections: Features threaded fittings for secure and easy installation.

4 – Durable Construction: Made from high-quality materials such as brass or stainless steel, ensuring long-lasting performance and corrosion resistance.

5 – Automation Ready: Electrically actuated for precise and reliable control in automated systems.

6 – Compact Design: Space-efficient, suitable for installations with limited space.

7 – Versatile Fluid Compatibility: Capable of handling a range of fluids, including air, water, and chemicals.

8 – Low Maintenance: Designed for minimal upkeep, reducing maintenance requirements and operational costs.
