“aira” Offers HIGH FLOW piston type solenoid valves, are specially engineered in the construction of Investment Cast CF8 / CF8M / CF3M body for multiple and long lasting operations, especially in STEAM & HIGH Temperature FLUIDS. Valves for the inflammable media / environment / Flameproof / Explosion Proof solenoid coil are available in such application.
Specification & Standard
Size Range
1/4" to 4" Flanged
Tempreature Range
Upto 180°C
Pressurre Class
0 to 5 Bar
End Connection
Flanged 150#
Certification
CE
Media
Hot Water, DRX Steam, Avoid Back Pressure Installation Of Filter Inlet Side
Body Material
CF8, CF3M, CF8M
Seat Material
PTFE, Viton
Flange Drilling
As Per 150#
Features & Benefits
1 – 2/2 Way Design: Manages fluid flow with a two-port configuration for effective on/off control.
2 – Normally Closed/Normally Open: Available in both NC and NO options to meet various application needs.
3 – Flanged Connections: Robust flanged fittings ensure secure and stable installation, suitable for high-pressure environments.
4 – Durable Construction: Made from high-quality materials like stainless steel or brass for long-term reliability and resistance to corrosion.
5 – Automation Ready: Electrically actuated for precise and reliable control in automated systems.
6 – Versatile Fluid Compatibility: Handles a wide range of fluids, including air, water, and chemicals.
7 – Low Maintenance: Designed for minimal upkeep, reducing maintenance needs and operational costs.
2-2 Way

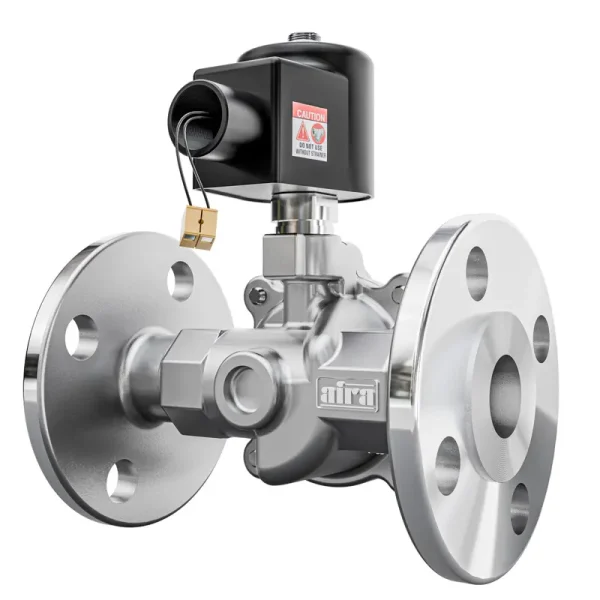

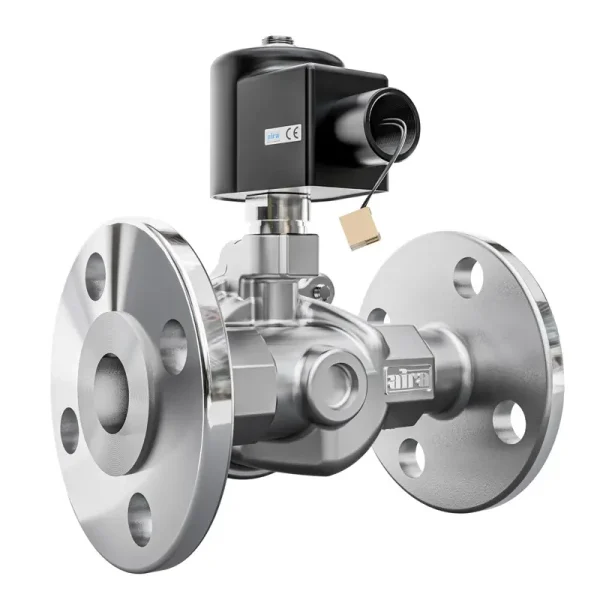

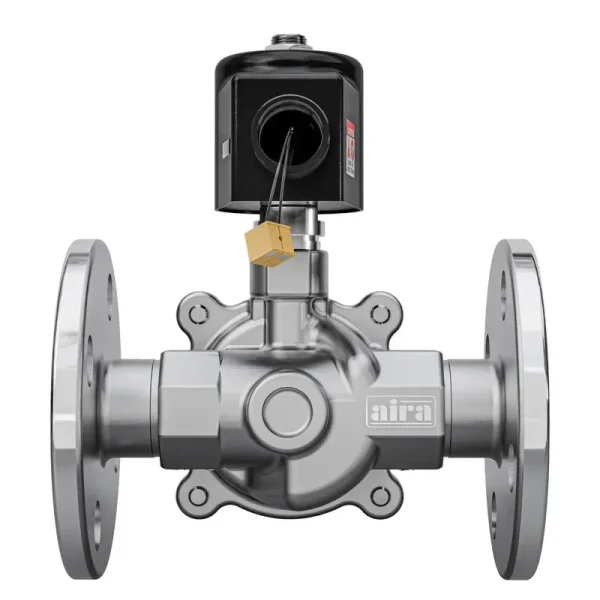

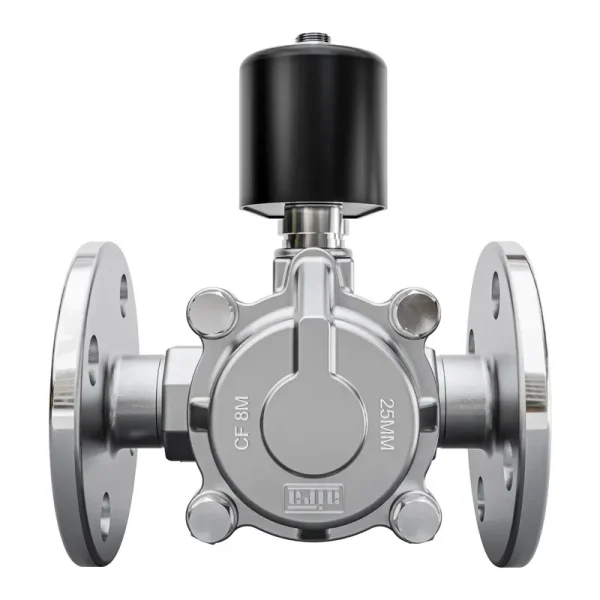

Piston Steam & High Temperature Pilot Flanged Solenoid Valve
Dimension Table
2-2 Way
Piston Steam & High Temperature Pilot Flanged Solenoid Valve
Dimension Table
