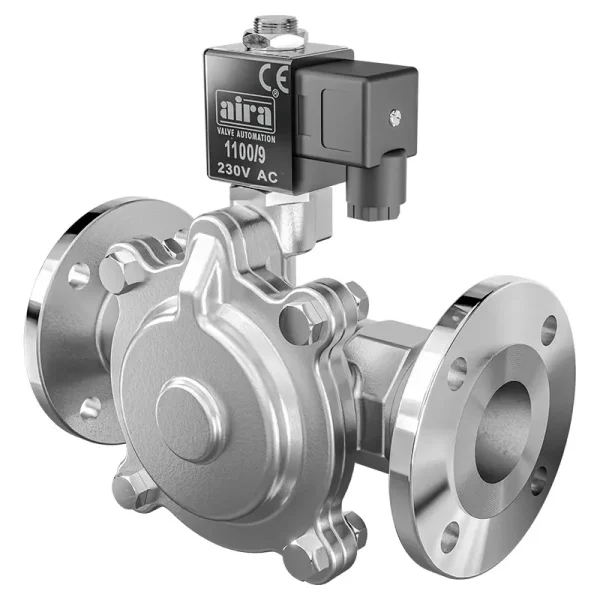

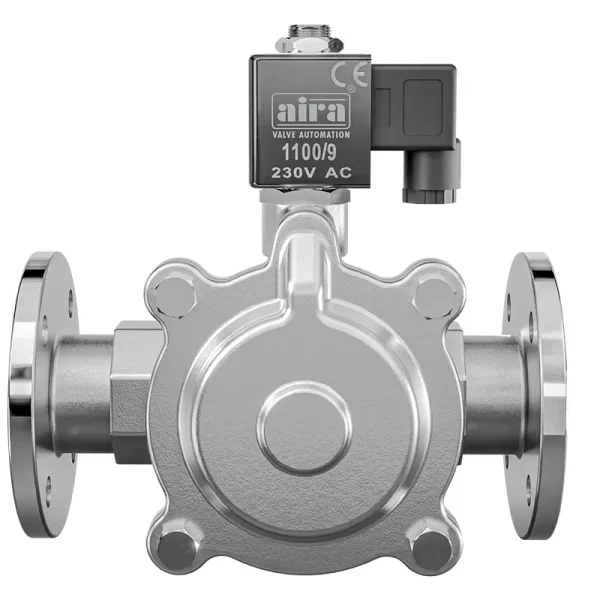

2-2 Way Pilot Operated Diaphragm Type Flanged Solenoid Valve

Size Range
1/2" To 6"
Temperature Range
Upto 85°C
Working Pressure
-0.7 To 12 Bar, -1 To 12 Bar
Inquiry Now

Approvals

“aira” Offers reliable on/off control with flanged connections, available in normally closed or normally open configurations for robust and efficient automation.

Specification & Standard

End Connection

Flanged End 150#

Size Range

1/2" To 6"

Tempreature Range

Upto 85°C

Pressure Class

-0.7 To 12 Bar, -1 To 12 Bar

Media

Air, Water, Oil, & Gas

Body Material

CF8

Certification

CE

Features & Benefits

1 – 2/2 Way Design: Provides on/off control with a two-port configuration for managing fluid flow.

2 – Normally Closed/Normally Open: Available in both NC and NO configurations to suit various automation requirements.

3 – Flanged Connections: Features flanged fittings for secure and robust installation, ideal for high-pressure and demanding applications.

4 – Automation Ready: Electrically actuated for precise and reliable control in automated systems.

5 – Durable Construction: Made from high-quality materials like stainless steel or brass, ensuring long-term durability and resistance to corrosion.

6 – Compact and Efficient: Designed to fit in constrained spaces while maintaining high performance.

7 – Versatile Fluid Compatibility: Handles a wide range of fluids, including air, water, and chemicals.

8 – Low Maintenance: Engineered for minimal upkeep, reducing maintenance needs and operational costs.

2-2 Way

Pilot Operated Diaphragm Type Flanged Solenoid Valve

Dimension Table

2-2 Way

Pilot Operated Diaphragm Type Flanged Solenoid Valve

Dimension Table
