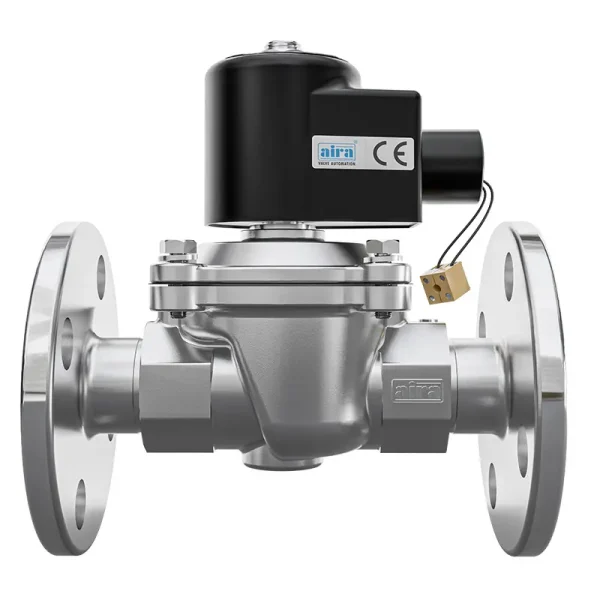

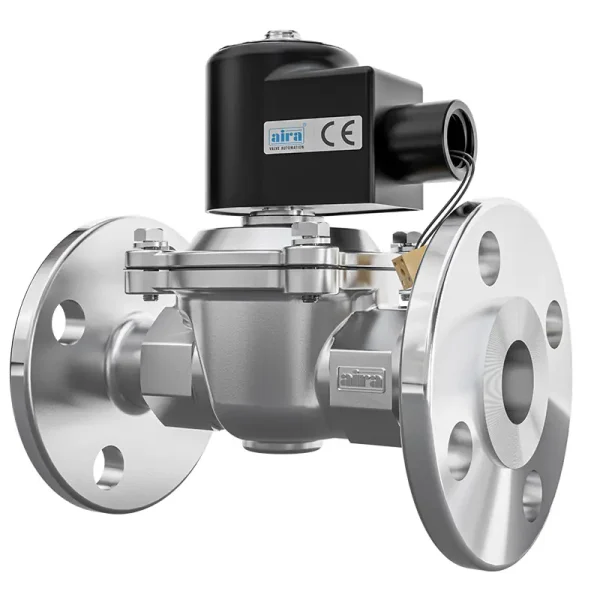

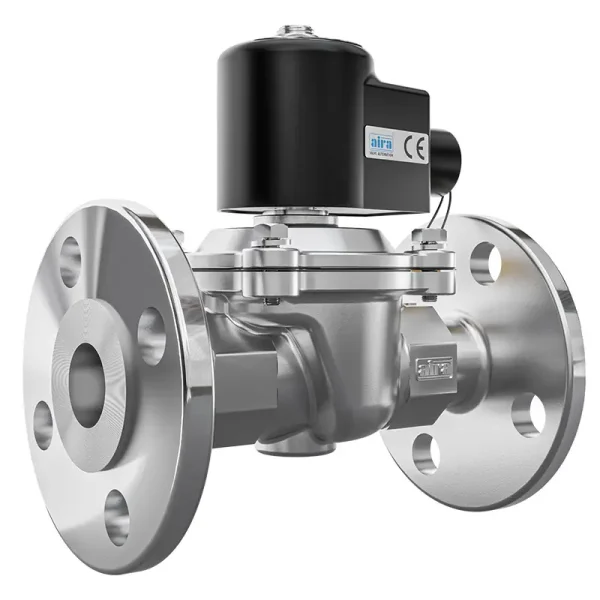

2-2 Way High Temperature Flanged Solenoid Valve

Inquiry Now

Approvals

“aira” Offers 2/2 way semi Lift, high performance diaphragm type solenoid Valves, for high volume and low pressure application in air, gas, water, vacuum, light oil, corrosive fluids. available in normally close and normally open design.

Specification & Standard

Size Range

3/8" To 4" Flanged 150#

Tempreature Range

180°C Max. ( High Temperature On Request )

Pressurre Class

0 To 5 Bar Max. ( 0 to 6 Bar On Request )

End Connection

Flanged 150#

Flange Drilling

As Per 150#

Media

Oil Plants, Vaccum Plant, Pump Seal, Water

Body Material

CF8, CF3M, CF8M

Seat Material

PTFE, Viton

Certification

Body Style

Flameproof Normally Open And Close

Features & Benefits

1 – 2/2 Way Design: Offers efficient on/off control with a two-port configuration for managing fluid flow.

2 – Normally Closed/Normally Open Options: Available in both normally closed (NC) and normally open (NO) configurations to accommodate various automation needs.

3 – Flanged Connections: Features robust flanged fittings for secure and stable installation, especially suited for high-pressure applications.

4 – Automation Ready: Electrically actuated for precise and reliable automated control.

5 – Durable Construction: Constructed from high-quality materials such as stainless steel or brass, ensuring durability and resistance to corrosion and wear.

6 – Compact and Sturdy: Designed to fit in demanding environments while maintaining high performance.

7 – Versatile Fluid Compatibility: Capable of handling a broad range of fluids, including air, water, and chemicals.

8 – Low Maintenance: Requires minimal upkeep, reducing maintenance costs and downtime.

9 – Fast and Reliable Actuation: Provides quick and consistent switching for efficient system operation.
