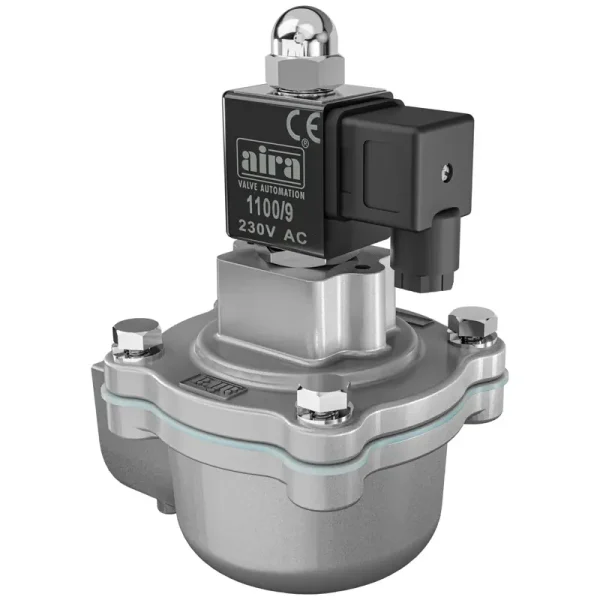

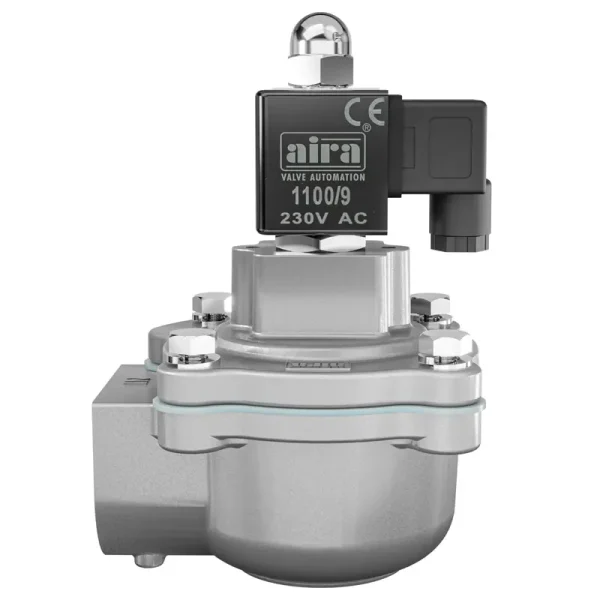

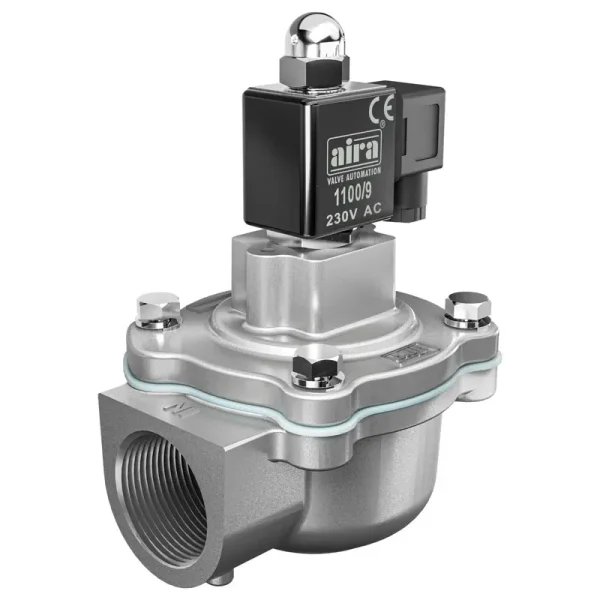

“aira” Offers high performance diaphragm operated pulse and pilot solenoid valves with threaded ports. Available with integral pilot or as remotely pilot valves. Out let at 90O to inlet. The pulse valves have just one moving part, the Springless construction of diaphragm providing fast ON-OFF operation. This high speed operation saves compressed air and provides kind of shock wave necessary to free the dust from filter bags.
Specification & Standard
Size Range
1/2" To 1.1/2" Screwed
Tempreature Range
Rated For 80°C max. ( For High Temperature upto 125°C Viton Diaphragm With Viton Seat Can Be Provide )
Pressurre Class
0.6 To 8.5 Bar Max
Media
Dust Collector Application, Cartridge Filter, Envelope Filter.
Body Material
Aluminium
Seat Material
NBR
Certification
CE
Features & Benefits
1 – Designed to handle a specific range of pressures, suitable for various industrial applications. The exact range will depend on the specific model.
2 – Features threaded (screwed) connections for easy installation and integration into existing piping systems
3 – Designed for low maintenance with easy access to parts for cleaning or replacement if necessary.
4 – May include features to ensure safe operation, such as over-temperature protection or protection against electrical faults.
2-2 Way
Dust Collector Solenoid Valve
Dimension Table
2-2 Way
Dust Collector Solenoid Valve
Dimension Table
