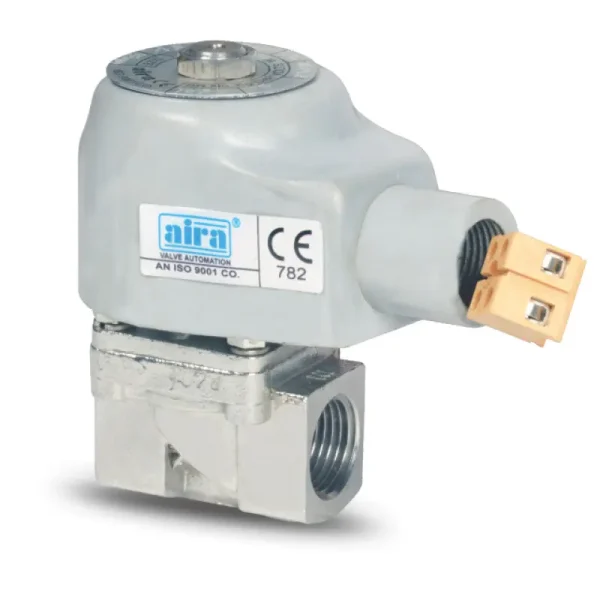

2-2 Way Direct Acting Pilot Solenoid Valve

Size Range
1/2" To 3/4" Screwed
Temperature Range
Upto 150°C for Steam, 95°C for Hot Water
Working Pressure
0 To 9 Bar
Inquiry Now

Approvals

“aira” Offers For Steam and hot water application upto 10 bar pressure NORMALLY CLOSED, ENERGISED TO OPEN

Specification & Standard

Size Range

1/2" To 3/4" Screwed

Temperature

Upto 150°C for Steam, 95°C for Hot Water

Pressure Class

0 To 9 Bar

End Connection

Screwed End (BSP)

Body Material

CF8 / CF8M

Features & Benefits

1 – Direct Acting Mechanism: Operates Directly With The   Solenoid, Providing Quick And Responsive Control Without the need for a Pilot Valve

2 – 2/2 Way Configuration: Features two ports and two positions, allowing for straightforward on/off control of fluid flow

3 – Durable Construction: Made with robust materials to ensure reliable performance and longevity in various operating conditions

4 – Compact Design: Space-efficient and easy to install in tight or constrained spaces

5 – Versatility: Suitable for a range of applications involving gases and liquids, with compatibility across various industries

2-2 Way

Direct Acting Pilot Solenoid Valve

Dimension Table

2-2 Way

Direct Acting Pilot Solenoid Valve

Dimension Table
