2-2 Way

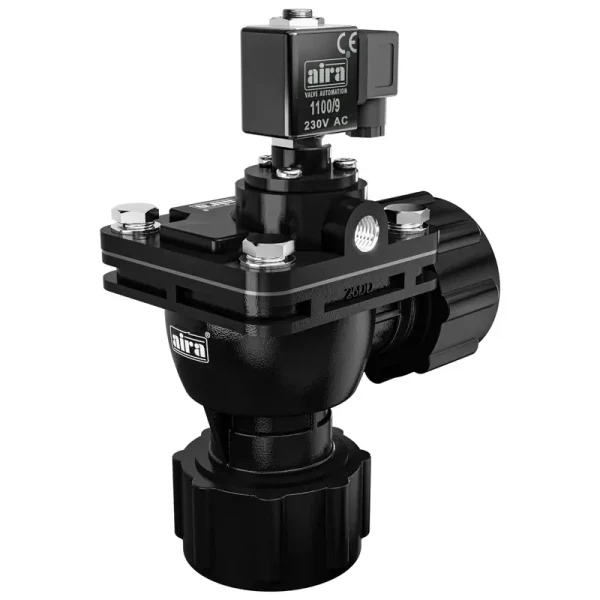

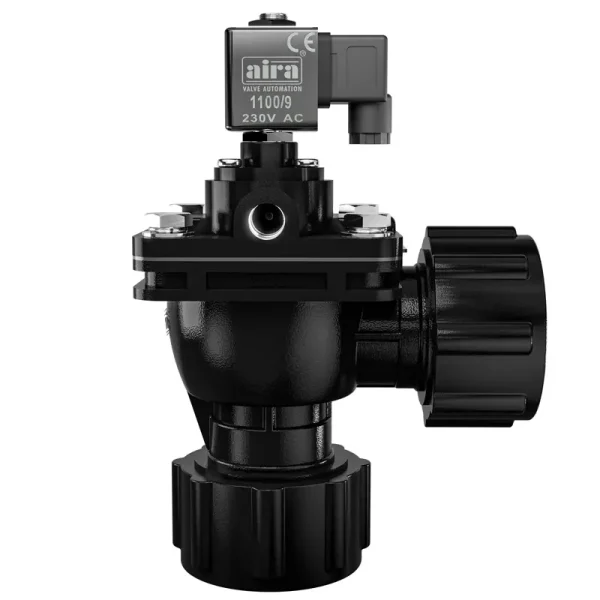

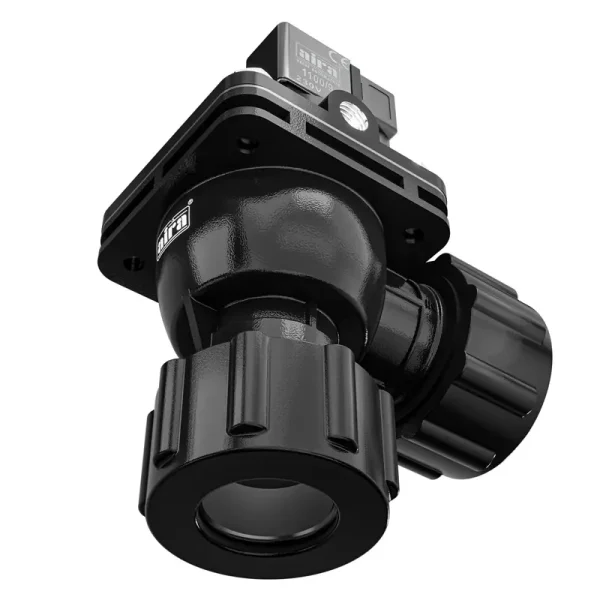

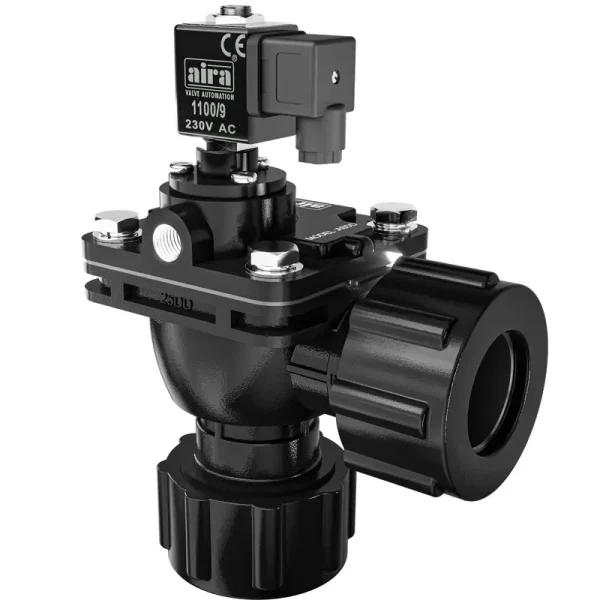

Angle Type Dust Collector Union Pulse Valve

Size Range
1" To 1.1/2" Screwed
Temperature Range
Rated For 80°C max. ( For High Temperature upto 125°C Viton Diaphragm With Viton Seat Can Be Provide )
Working Pressure
0.6 To 8.5 Bar Max
Inquiry Now

2-2 Way Angle Type Dust Collector Union Pulse Valve

Size Range
1" To 1.1/2" Screwed
Temperature Range
Rated For 80°C max. ( For High Temperature upto 125°C Viton Diaphragm With Viton Seat Can Be Provide )
Working Pressure
0.6 To 8.5 Bar Max
Inquiry Now

Approvals

“aira” Offers Superior performance, Easy maintenance diaphragm valve available with dresser nut. Outlet at 90O to inlet valve are available as remote pilot valve and may be converted to integral pilot. Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations Including bag filters, Cartridge filters, Envelope filters, Ceramic Filters & Sintered metal fiber filters.

Specification & Standard

Size Range

1" To 1.1/2" Screwed

Tempreature Range

Rated For 80°C max. ( For High Temperature upto 125°C Viton Diaphragm With Viton Seat Can Be Provide )

Pressurre Class

0.6 To 8.5 Bar Max

Media

Dust Collector application, Bag Filter, Envelope Filter, Ceramic Filter

Body Material

Aluminium

Seat Material

NBR, Viton

Certification

CE

Disc Material

Aluminium

Features & Benefits

1 – Designed to handle specific pressure ranges depending on the application requirements. Refer to the datasheet for exact pressure ratings.

2 – Normally closed (NC) – the valve remains closed when the solenoid is de-energized and opens when the solenoid is energized.

3 – Constructed from durable materials like brass, stainless steel, or aluminum to ensure long-term performance and resistance to corrosion.

2-2 Way

Angle Type Dust Collector Union Pulse Valve

Dimension Table

2-2 Way

Angle Type Dust Collector Union Pulse Valve

Dimension Table
