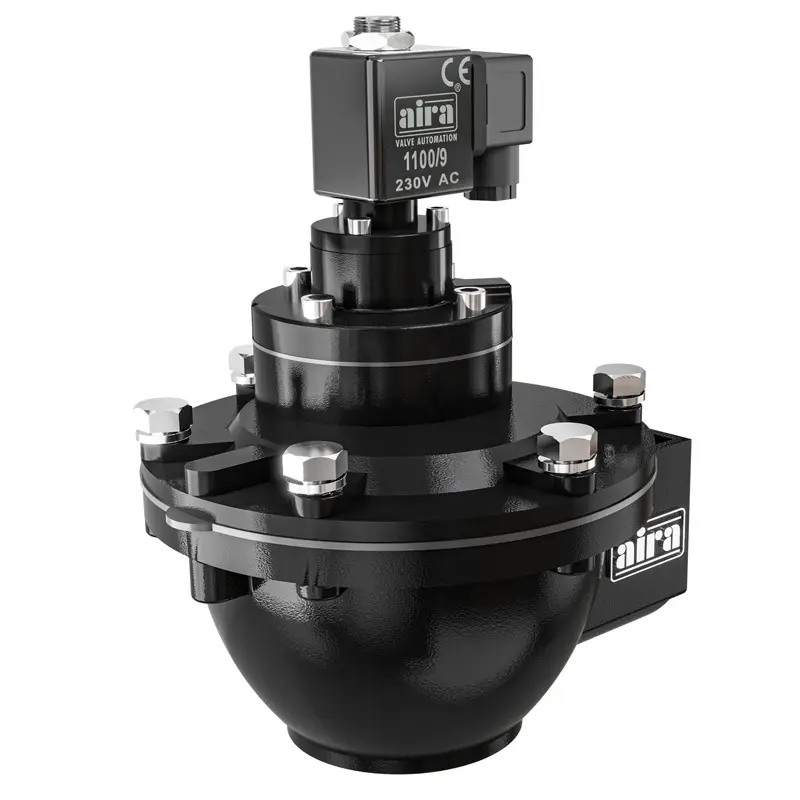

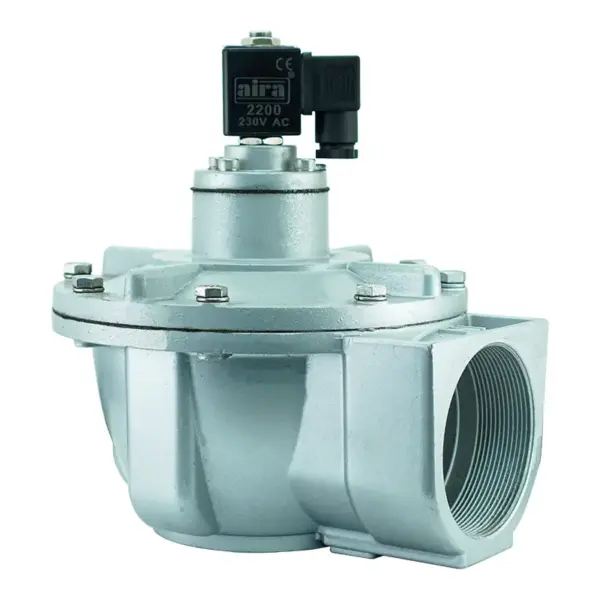

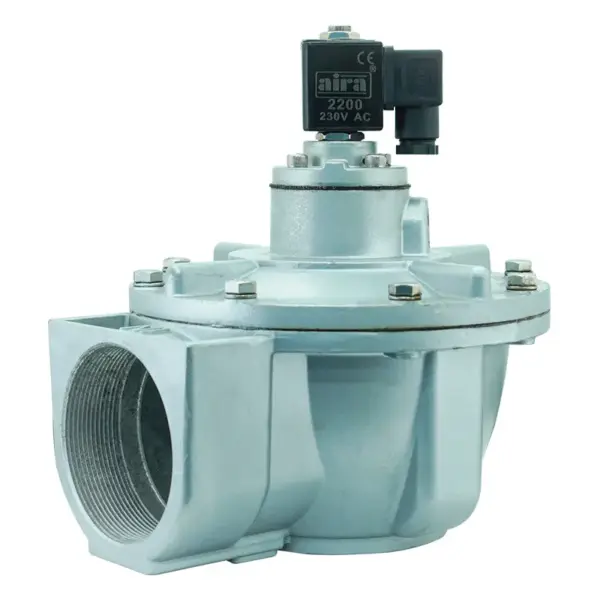

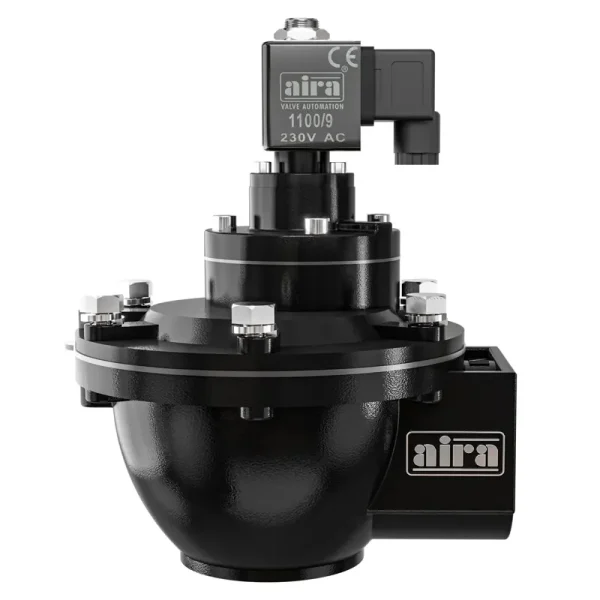

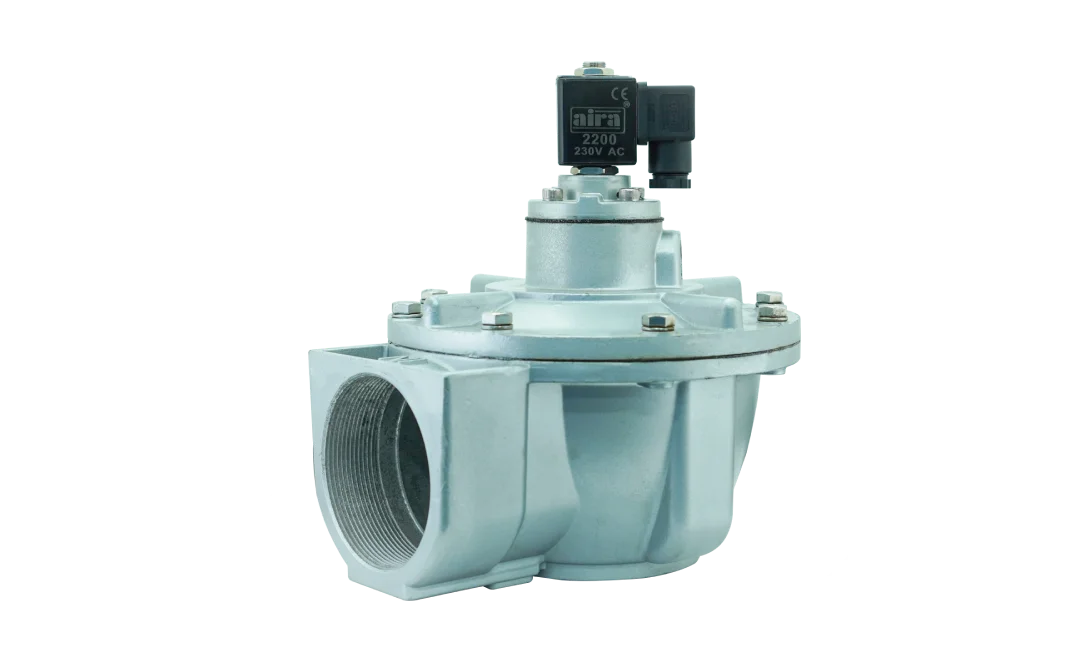

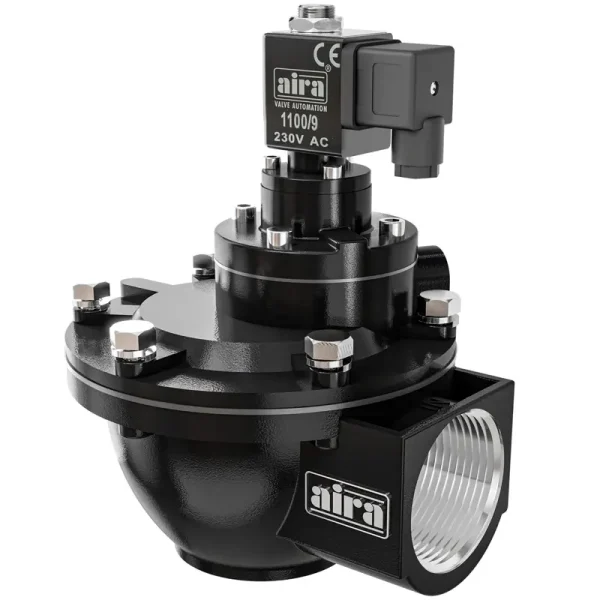

2-2 Way Angle Type Dust Collector Pulse Valve

Size Range
1/2" To 3" Screwed
Temperature Range
Rated For 80°C Max. ( For High Temperature upto 125°C Viton Diaphragm With Viton Seat Can Be Provide )
Working Pressure
0.6 To 8.5 Bar Max
Inquiry Now

Approvals

“aira” Offers high performance diaphragm operated valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet.

Specification & Standard

Size Range

1/2" To 3" Screwed

Tempreature Range

Rated For 80°C max. ( For High Temperature upto 125°C Viton Diaphragm With Viton Seat Can Be Provide )

Pressurre Class

0.6 To 8.5 Bar Max

Media

Envelope Filter, Cartridge Filter, Bag Filter, Ceramic Filter

Body Material

Aluminium

Seat Material

NBR, Viton

Certification

CE

Features & Benefits

1 – 2/2 Way Design: Provides reliable on/off control with a two-port configuration.

2 – Normally Closed: Default position is closed when de-energized, opening only when actuated.

3 – Screwed Connections: Threaded fittings ensure secure and straightforward installation.

4 – Automation Ready: Electrically actuated for precise and automated control in various systems.

5 – Durable Construction: Made from robust materials like brass or stainless steel for long-lasting performance.

6 – Compact Size: Space-efficient design suitable for installations with limited space.

7 – Versatile Fluid Compatibility: Handles a wide range of fluids, including air, water, and chemicals.

8 – Low Maintenance: Requires minimal upkeep for reliable and cost-effective operation.

9 – Fast Response Time: Provides quick and efficient switching for enhanced system performance.

2-2 Way

Angle Type Dust Collector Pulse Valve

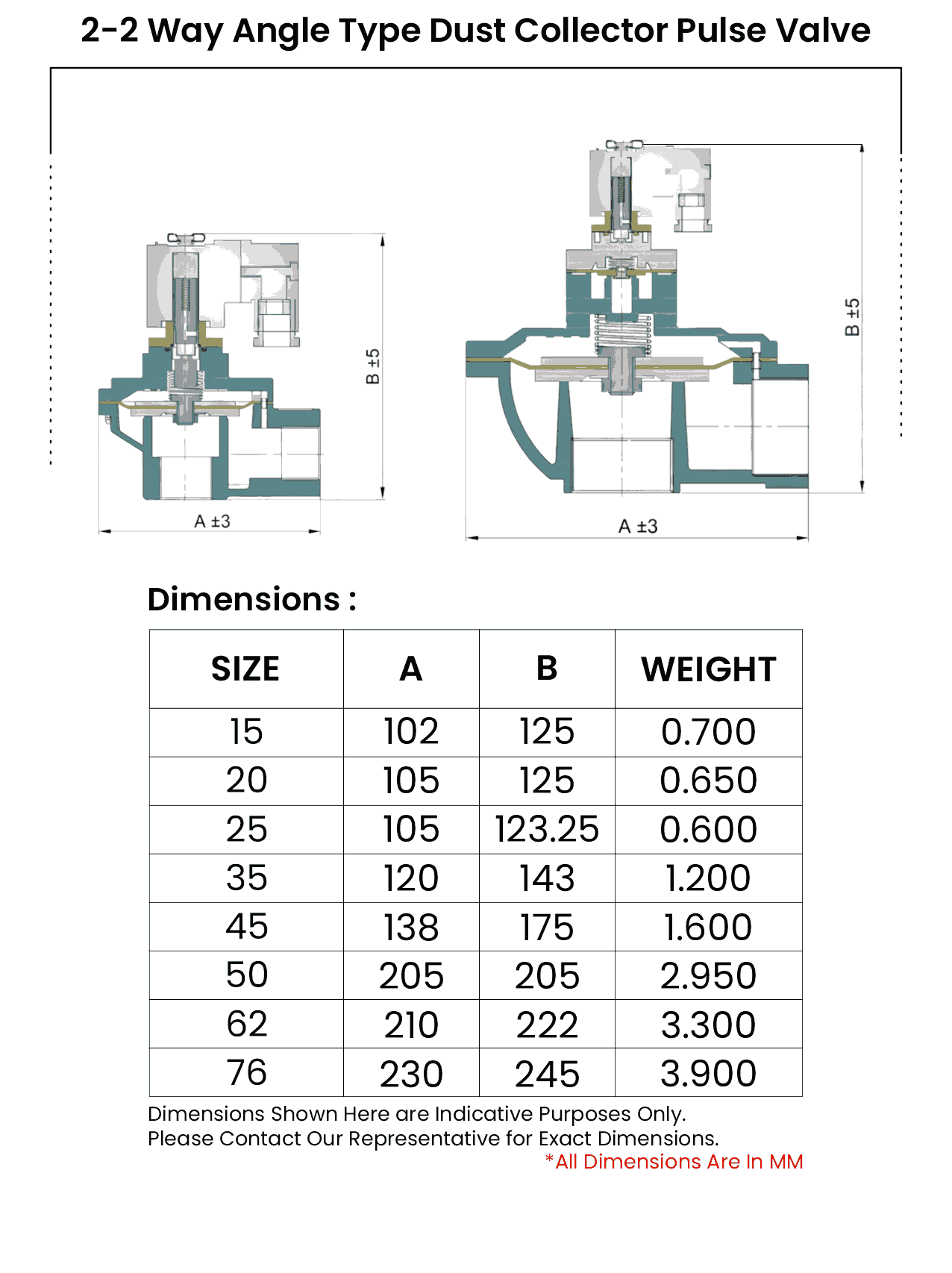

Dimension Table

2-2 Way

Angle Type Dust Collector Pulse Valve

Dimension Table
